Cover(S), Cylinder Head: Installation
WARNING: This page is about a different variant/trim than selected.
NOTE:

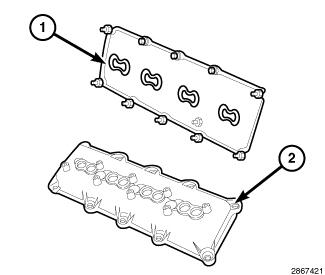

The cylinder head cover gasket (1) may be used again, provided no cuts, tears, or deformation have occurred.
- Inspect the cylinder head cover gasket (1), replace if necessary.CAUTION:
Do not use harsh cleaners to clean the cylinder head covers. Severe damage to covers may occur.
- Clean the cylinder head cover (2) and the cylinder head sealing surface.
- Apply Mopar® Lock & Seal Adhesive to the cylinder head cover bolts.
- Position the cylinder head cover and hand tighten the bolts.
- Using the sequence shown, tighten the cylinder head cover bolts to 8 N.m (70 in. lbs.).CAUTION:
Do not allow other components including the wire harness to rest on or against the engine cylinder head cover. Prolonged contact with other objects may wear a hole in the cylinder head cover.
- Position the wiring harness and attach the retainers to the cylinder head cover.
- Before installing the ignition coils, apply dielectric grease to the inside of the spark plug boots (1).
- Install the ignition coils (1).
- Install the ignition coil retaining bolts (3) and tighten to 7 N.m (62 in. lbs.).
- Connect the ignition coil electrical connectors (1).

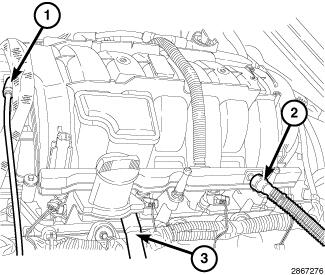

- Connect the make up air hose (3) to the intake manifold.
- Connect the fuel supply line (2) to the fuel rail.
- Connect the EVAP vacuum line (1) to the throttle body.
- Connect the negative battery cable (2).
- Install the engine cover (2).
- Install the oil fill cap (1).
- Start the engine and check for leaks.
