Valve, Positive Crankcase Ventilation (PCV): Removal

WARNING: This page is about a different variant/trim than selected.
GC0170121Courtesy of CHRYSLER GROUP, LLC

The PCV valve is located at the top right rear of the cylinder head cover.

  1. Remove the right engine cover (1).
    GC0170131Courtesy of CHRYSLER GROUP, LLC

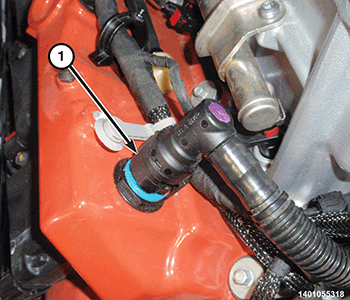

  2. Remove the PCV hose (1) from the PCV valve.
    GC0170543Courtesy of CHRYSLER GROUP, LLC

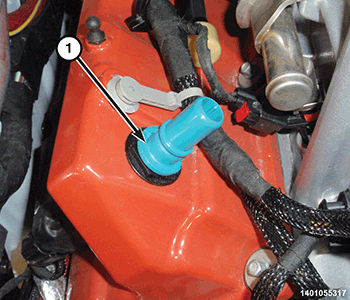

  3. Rotate PCV valve (1) counterclockwise 90 degrees then pull up and remove the PCV valve from cylinder head cover.
