Valve, Positive Crankcase Ventilation (PCV): Installation

WARNING: This page is about a different variant/trim than selected.

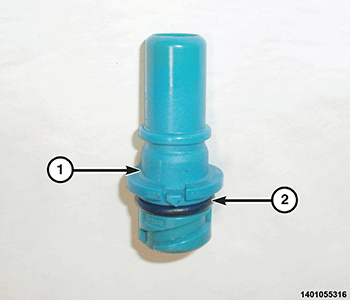

GC0170386Courtesy of CHRYSLER GROUP, LLC
  1. Clean the PCV valve mounting surface of the cylinder head cover.
  2. Lubricate the O-ring seal (2) with clean engine oil.
    GC0170543Courtesy of CHRYSLER GROUP, LLC
  3. Install the PCV valve (1) into the cylinder head cover and rotate 90 degrees clockwise until the locating tabs are locked in place.
    GC0170131Courtesy of CHRYSLER GROUP, LLC
  4. Install the PCV hose (1) onto the PCV valve.
    GC0170121Courtesy of CHRYSLER GROUP, LLC
  5. Install the right engine cover (1).
