Motor, Shift: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Raise and support the vehicle.
    GC0192518Courtesy of CHRYSLER GROUP, LLC
  2. Remove the fasteners (1) and remove the heat shield.
  3. Disengage the wiring harness electrical connector from the shift motor.
  4. Remove the bolts holding the shift motor onto the transfer case.

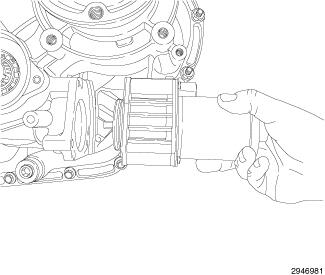

    GC0209210Courtesy of CHRYSLER GROUP, LLC
  5. Remove the shift motor from the transfer case.
    GC0209225Courtesy of CHRYSLER GROUP, LLC
  6. Remove the O-ring seal from the shift motor.
