Section 13 (Mp3023 Transfer Case (Service Information)): Disassembly

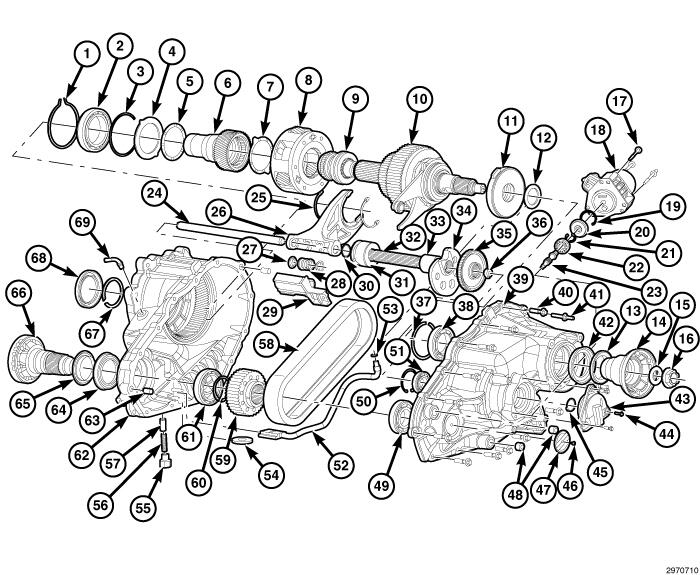

| 1 - HOUDINI RETAINING RING | 36 - COUPLING |
| 2 - INPUT BALL BEARING | 37 - RETAINING RING |
| 3 - RETAINING RING | 38 - BEARING |
| 4 - CARRIER LOCK PLATE | 39 - REAR CASE HALF ASSEMBLY |
| 5 - FRONT CARRIER THRUST WASHER | 40 - BOLT |
| 6 - INPUT GEAR ASSEMBLY | 41 - SCREW |
| 7 - CARRIER THRUST SHIM | 42 - RADIAL SEAL RING |
| 8 - PLANETARY CARRIER ASSEMBLY | 43 - SENSOR |
| 9 - RANGE SLEEVE | 44 - SCREW |
| 10 - MAINSHAFT ASSEMBLY | 45 - RETAINING RING |
| 11 - OIL PUMP ASSEMBLY | 46 - SCREW |
| 12 - REAR THRUST WASHER | 47 - IDENTIFICATION TAG |
| 13 - REAR WEAR SLEEVE | 48 - FILL/DRAIN PLUG |
| 14 - REAR OUTPUT FLANGE | 49 - REAR BEARING |
| 15 - O-RING SEAL | 50 - SHIFT SHAFT BEARING RETAINING RING |
| 16 - FLANGE NUT | 51 - SHIFT SHAFT BEARING |
| 17 - SCREW | 52 - TUBE & SCREEN ASSEMBLY |
| 18 - SHIFT MOTOR | 53 - O-RING SEAL |
| 19 - WORM SHAFT OIL SEAL | 54 - MAGNET |
| 20 - RETAINING RING | 55 - SCREW |
| 21 - RETAINING RING | 56 - SPRING |
| 22 - BALL BEARING | 57 - DETENT POPPET |
| 23 - WORM SHAFT | 58 - CHAIN |
| 24 - SHIFT RAIL | 59 - SPROCKET |
| 25 - RANGE FORK PAD | 60 - RETAINING RING |
| 26 -RANGE FORK | 61 - FRONT BEARING |
| 27 - SLEEVE WASHER | 62 - FRONT CASE HALF ASSEMBLY |
| 28 - SPRING | 63 - DOWEL BUSHING |
| 29 - BRACKET ASSEMBLY | 64 - RADIAL SEAL RING |
| 30 - RETAINING RING | 65 - FRONT WEAR SLEEVE |
| 31 - BARREL CAM | 66 - FRONT OUTPUT FLANGE |
| 32 - SHIFT SHAFT ASSEMBLY | 67 -RETAINING RING |
| 33 - BUSHING | 68 - INPUT SEAL |
| 34 - CLUTCH CAM | 69 - VENT |
| 35 - GEAR |
If the transfer case assembly is being reconditioned (clutch/seal replacement) or replaced, it is necessary to perform the Quick Learn Procedure using the Scan Tool.
- Place the transfer case in a shallow pan and remove the fill and drain plugs to drain the remainder of the fluid.
- Using Holder (special tool #C-3281, Holder, Flange) (1), remove the rear flange (2) nut.
- Remove the rear output flange from the main shaft. If necessary, use a suitable 2 or 3 jaw puller to remove the output flange.
- Remove encoder screws and the encoder from the transfer case.
- Remove the shift shaft snap ring from the transfer case.
- Remove shift motor bolts and the shift motor from the transfer case.
- Remove the O-ring from the shift motor.
- Using a suitable pry tool, remove shift motor seal from the transfer case.
- Remove the worm shaft snap ring from the transfer case.CAUTION:
Carefully unthread (rotate clockwise) the worm shaft to remove it from the transfer case. Failure to follow this caution may result in parts damage.
- Remove the worm shaft from the transfer case.NOTE:
Some prying may be necessary to break the seal between the front and rear case. Use care to not damage the sealing surfaces.
- Remove the bolts retaining the rear housing to the front housing and separate the housings.
- Remove the output shaft thrust washer.
- Remove the oil pump assembly.
- Remove oil tube (1) from the oil pump and remove the O-ring (2).
- Remove the pick-up magnet from the magnet pocket.NOTE:
For ease of installation note the orientation of the worm shaft drive gear inner splines to the shift shaft outer splines.
- Remove the worm drive gear.NOTE:
For ease of installation note the orientation of the clutch cam inner splines to the shift shaft outer splines.
- Remove the clutch cam.
- Remove the clutch upper snap ring.
- Remove the clutch shim.

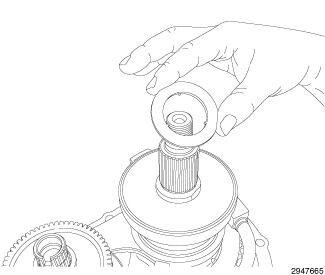

- Remove the thrust collar.
- Remove the upper thrust bearing race.
- Remove the upper thrust bearing.
- Remove the upper shift lever.
- Remove the shift lever balls.
- Remove the lower shift lever.
- Remove the lower thrust bearing.
- Remove the lower thrust bearing race.
- Remove the clutch apply piston.NOTE:
For ease of installation note the assembly orientation of the 4 identical springs.
- Remove the clutch return springs.
- Remove the clutch pack.
- Remove the inner clutch hub.

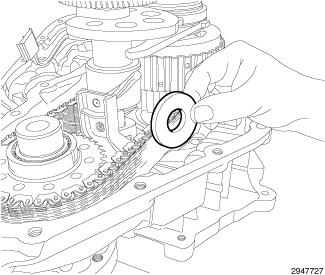

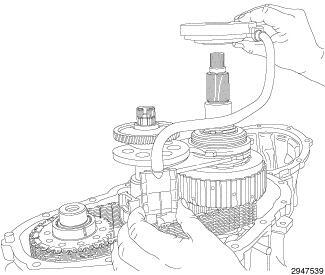

- Remove the clutch drum thrust washer (1) and snap ring (2).
- Remove the outer clutch drum from the main shaft drive sprocket.

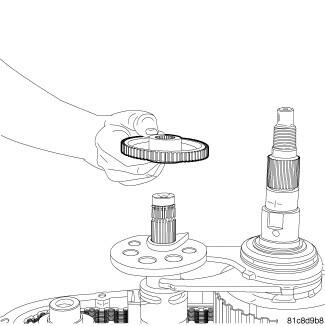

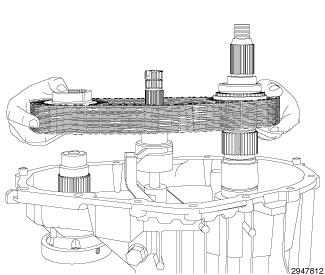

- Remove the front drive sprocket, main shaft drive sprocket and drive chain as one.
- Remove the shift shaft spacer.NOTE:
For ease of installation note the orientation of the barrel cam inner splines to the shift shaft outer splines.
- Remove the barrel cam.
- Remove the shift shaft.

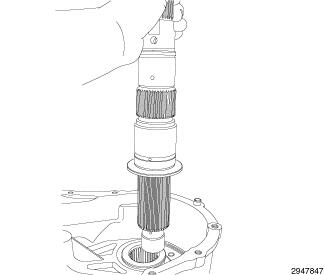

- Remove the main shaft from the transfer case.

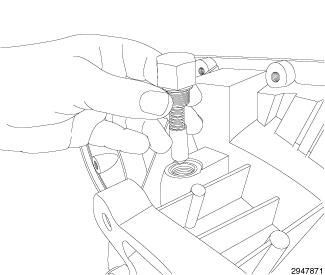

- Remove the detent assembly.NOTE:
For ease of assembly note the orientation of the shift fork to the shift rail.

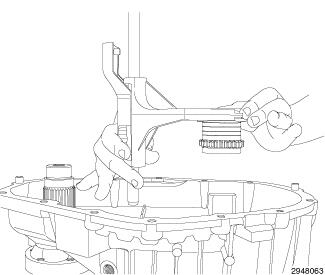

- Remove the range shift rail assembly and range sleeve. Remove the rail, bracket, spring and washers from the shift fork.

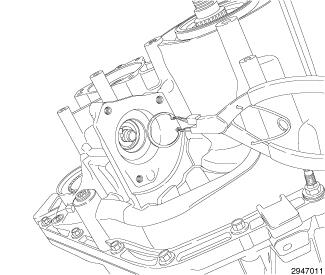

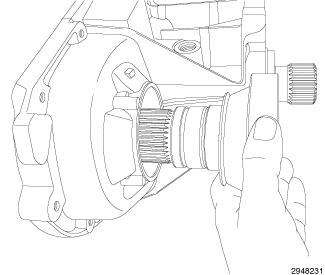

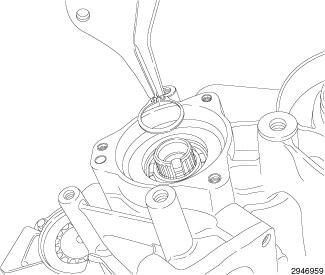

- Remove the retaining snap ring from the front output shaft.
- Remove the front output shaft from the transfer case.

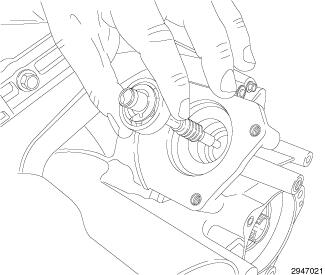

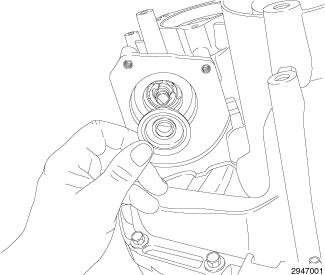

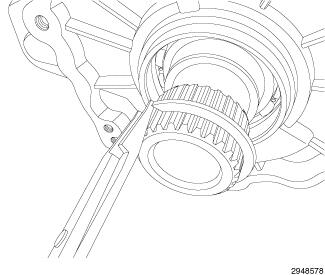

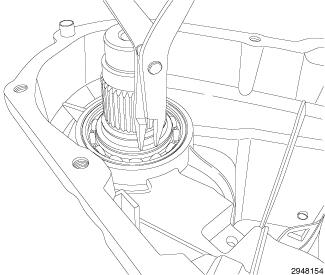

- Using a suitable pry tool or a screw mounted in a slide hammer, remove the input gear seal. Remove the input gear snap ring.

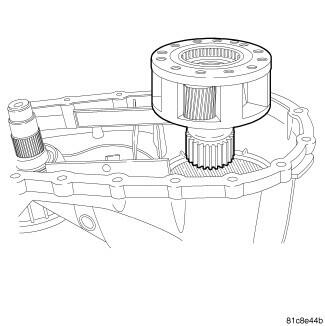

- Remove the input planetary gear assembly from the front housing.

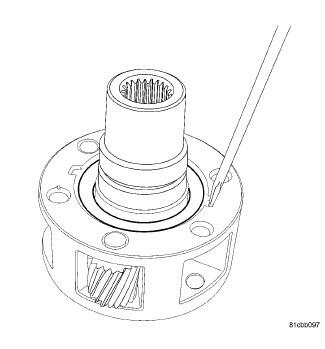

- Remove the snap-ring holding the input gear into the planetary gear.
- Remove the lock plate from the input and planetary gear assembly.

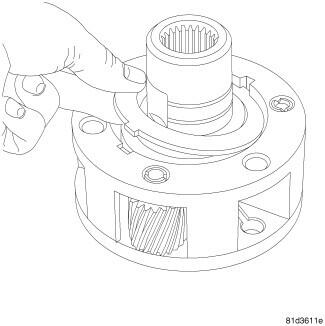

- Remove the thrust washer from the input and planetary gear assembly.

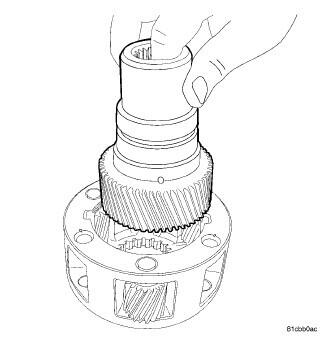

- Remove the input gear from the planetary gear.

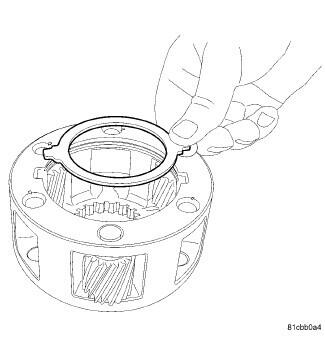

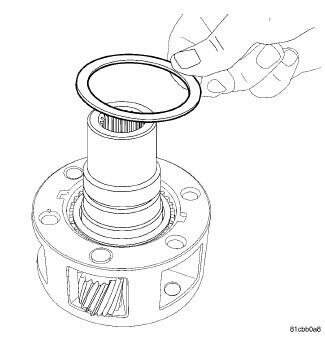

- Remove the tabbed thrust washer from the planetary gear.
