Output Shaft Seal

WARNING: This page is about a different variant/trim than selected.
CAUTION:

Do not allow the driveshaft to hang from the vehicle unsupported. Damage may occur to the joint, boot, and center bearing from over-angulation.

  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
    GC0170214Courtesy of CHRYSLER GROUP, LLC
  2. Remove the driveshaft bolts (1) and washers (2) to transmission output flange and position aside the driveshaft. Secure the driveshaft with a strap or equivalent.
    GC0169779Courtesy of CHRYSLER GROUP, LLC
  3. Using a suitable punch, remove the staking (3) from the transmission output flange nut (2).
  4. Using (special tool #C-3281, Holder, Flange) and a 34 mm 12 point socket, remove the transmission output flange nut (2).
    GC0209140Courtesy of CHRYSLER GROUP, LLC

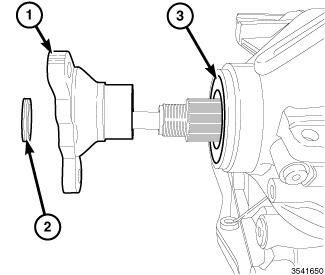

  5. Remove the transmission output flange (1) and transmission output shaft dust seal (2).
  6. Remove the transmission output shaft seal (3) with suitable screw and slide hammer.
