Clutch, B: Disassembly

WARNING: This page is about a different variant/trim than selected.

Courtesy of CHRYSLER GROUP, LLC

1 - Wave Plate

2 - Steel Plate

3 - Backing Plate

4 - Friction Plate

Courtesy of CHRYSLER GROUP, LLC

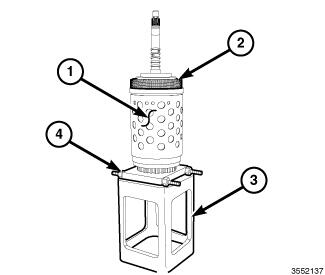

Position the input/output shaft and the P4 annulus drum assembly (1) on the Assembly, Press Fixture 8925-3
(special tool #8925-3, Assembly, Press Fixture)

Courtesy of CHRYSLER GROUP, LLC

(3) and the Splitter, Bearing/Gear 1130

(special tool #1130, Splitter, Bearing/Gear)

Courtesy of CHRYSLER GROUP, LLC

(4).

Courtesy of CHRYSLER GROUP, LLC
Remove the selectable shim (1).

Courtesy of CHRYSLER GROUP, LLC
Remove the P1 (1) annulus from the assembly.

Courtesy of CHRYSLER GROUP, LLC
Remove the clutch B wave plate (1).

Courtesy of CHRYSLER GROUP, LLC
Remove the clutch B friction (3) and steel plates (2).

Courtesy of CHRYSLER GROUP, LLC
Remove the clutch B backing plate (1) from the assembly (2).
