Manifold, Intake: Removal

WARNING: This page is about a different variant/trim than selected.

Perform the fuel system pressure release procedure. Refer to FUEL SYSTEM PRESSURE RELEASE .
Disconnect the negative battery cable.

Courtesy of CHRYSLER GROUP, LLC
Remove the engine covers (1).
Disconnect the fuel supply line. Refer to QUICK-CONNECT FITTINGS .
Remove the air cleaner housing. Refer to BODY, AIR CLEANER, REMOVAL .
Disconnect the brake booster hose and the Evap purge hose.

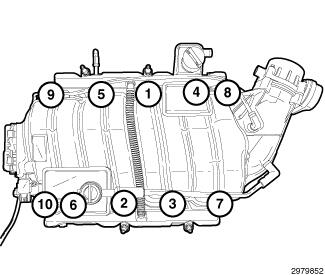

Fig 1: Intake Manifold Loosening Sequence
Courtesy of CHRYSLER GROUP, LLC
Disconnect the electrical connectors from the following components:
- Manifold Absolute Pressure (MAP) Sensor
- Short Runner Valve (SRV)
- Fuel Injectors
- Electronic Throttle Control (ETC)
NOTE:
Remove the intake manifold and throttle body as an assembly.
Using the sequence shown, remove the intake manifold retaining bolts.
Remove the intake manifold and throttle body as an assembly from the vehicle.
