Panel, Quarter Trim: Removal

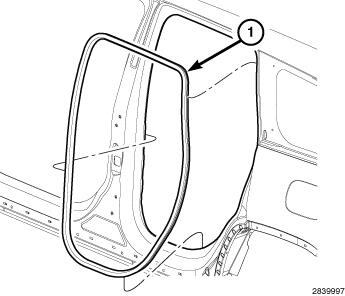

GC0208945Courtesy of CHRYSLER GROUP, LLC
  1. Remove the load floor. Refer to LOAD FLOOR, FOOTWELL, REMOVAL .
  2. Remove the D-pillar trim. Refer to PANEL, D-PILLAR TRIM, REMOVAL .
  3. Remove the rear door scuff plate. Refer to PLATE, SCUFF, DOOR, REMOVAL  .
  4. Position the door seal (1) aside.

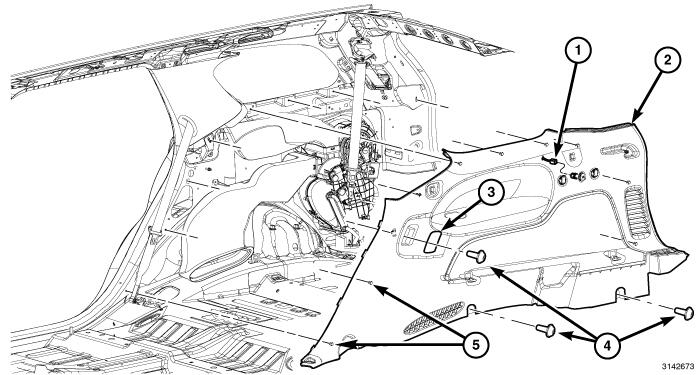

    GC0208932Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Right side shown, left side similar.

  5. Using a small flat bladed tool or equivalent, remove the screw cap (3).
  6. Remove the screws (4).
  7. Using a trim stick (special tool #C-4755, Trim Stick) or equivalent, disengage the retaining fasteners (5) that secure the quarter trim panel to the quarter panel.
  8. Pull the quarter trim panel away from the quarter panel.
  9. If equipped, disconnect the power outlet wire harness connector (1).
  10. For the left side, disconnect the flash light electrical connector and the power liftgate switch, if equipped.
  11. Remove the quarter trim panel (2).
