Removal - Rear

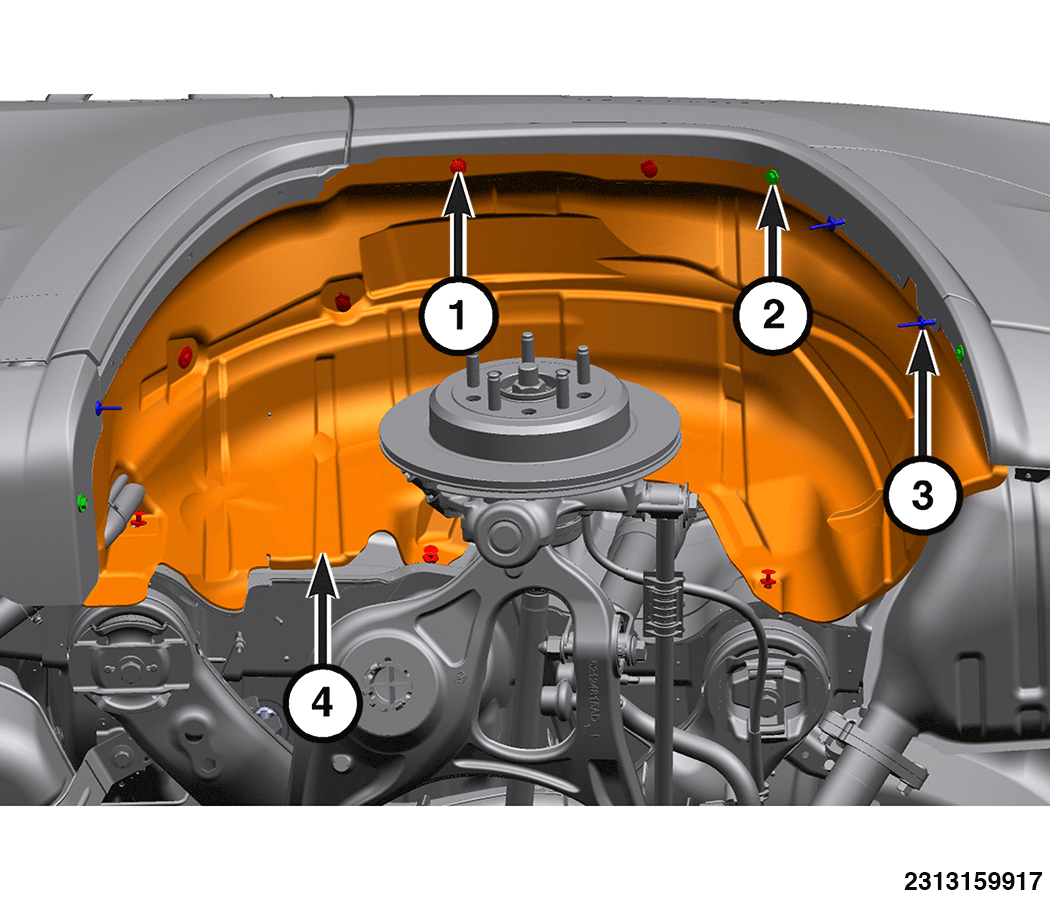

GC0184424Courtesy of CHRYSLER GROUP, LLC
  1. Remove the wheel and tire assembly.
  2. Drill out and remove the plastic rivets (3).
  3. Remove the retaining screws (2).
  4. Remove the plastic fasteners (1).
  5. Remove liner (4) from the vehicle.
