Removal - Front

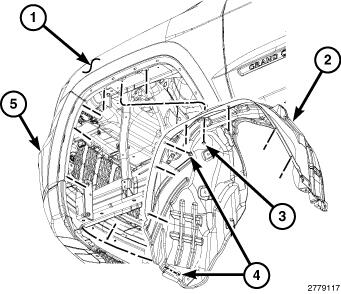

GC0208979Courtesy of CHRYSLER GROUP, LLC
  1. Remove the wheel and tire assembly.
  2. Drill out and remove the plastic rivets that secure the sill cladding to the wheel liner (2).
  3. Remove the fasteners (4) securing the liner to the front fascia (5).
    NOTE:

    If equipped with SRT intake air duct, there is an additional fastener holding the wheel splash shield. The intake air duct comes out with the wheel splash shield.

  4. Working around the perimeter, remove push-pins securing the liner to the fender (1).
  5. Remove remaining push-pins and remove the wheel liner from the vehicle.
