Rotor, Brake: Removal

NOTE:

Front rotor shown, rear rotor similar.

  1. Remove the brake caliper. Refer to CALIPER, DISC BRAKE, REMOVAL .
    NOTE:

    It is not necessary to disconnect the brake hose from the caliper for this procedure.

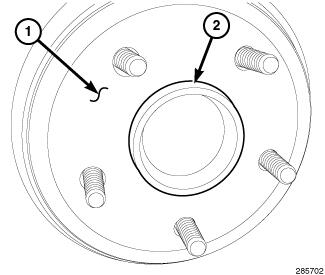

    GC0210164Courtesy of CHRYSLER GROUP, LLC
  2. If equipped, remove and DISCARD  the O-ring (2) securing the disc brake rotor (1) to the hub.
  3. Remove the disc brake rotor (1) from hub/bearing.
