CROSSMEMBER, Transmission: Removal

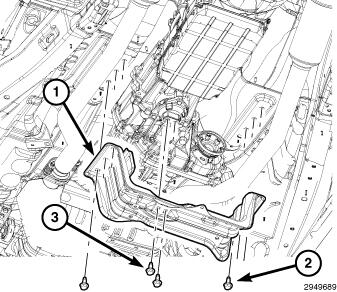

GC0209381Courtesy of CHRYSLER GROUP, LLC
  1. Remove the transmission skid plate. Refer to PLATE, SKID, TRANSMISSION, REMOVAL  .
  2. Remove the transmission crossmember reinforcement bracket bolts and brackets.
  3. Support the transmission with a suitable lifting device.
  4. Remove the rear transmission mount bolts (3).
  5. Remove the transmission crossmember bolts (2) and remove the crossmember (1).
