Channel, Sunroof Drain: Removal
- Remove sunroof glass. Refer to GLASS, SUNROOF, REMOVAL .CAUTION:
Do not pry the channel arms apart at the same time, damage to the drain channel may occur.

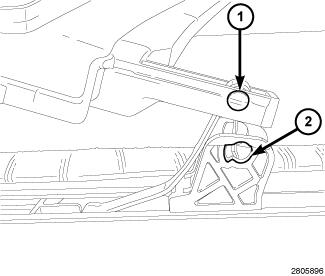

- Using a small flat bladed tool, separate the drain channel ends (1) from the guide mechanisms (2), one at a time.
- Remove the rest of the way by hand.
