Cover - 40% Seat Back

  1. Remove the armrest, if equipped. Refer to ARMREST, SECOND ROW, REMOVAL .
  2. Place the seat back face down on a clean work surface.
  3. Remove the headrest. Refer to HEADREST, SECOND ROW, REMOVAL  .

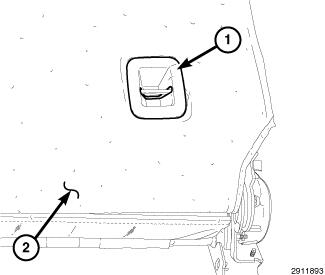

    GC0208899Courtesy of CHRYSLER GROUP, LLC
  4. Using (special tool #C-4755, Trim Stick) or equivalent, remove the anchor bezel (1) from the seat back panel (2).

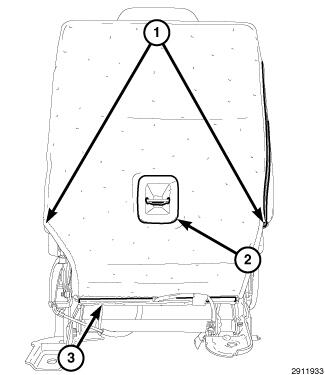

    GC0208898Courtesy of CHRYSLER GROUP, LLC
  5. Release the seat back cover lower J-straps (3).
  6. Release the two side zippers (1).

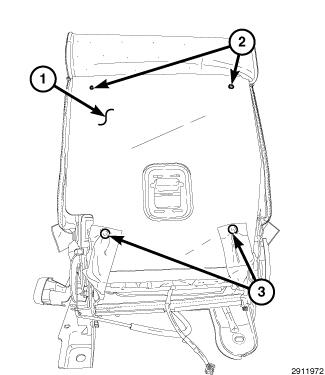

    GC0208897Courtesy of CHRYSLER GROUP, LLC
  7. Open the seat back cover and remove the upper push pins (2) from the seat back panel (1).
  8. Remove the lower push pins (3) and release the seat cover straps.
  9. Remove the seat back panel (1).

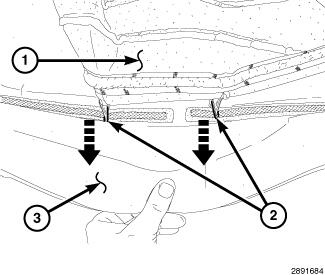

    GC0208902Courtesy of CHRYSLER GROUP, LLC
  10. Separate the seat back cushion and cover from the frame and remove.
  11. Open the cover (1) and expose the strip fasteners (2).
  12. While pulling down on the seat cushion foam (3), slide the strip fasteners (2) out of the foam and release.
