Closeout, Center: Removal

  1. Remove the floor console. Refer to CONSOLE, FLOOR, REMOVAL  .
  2. Remove the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, REMOVAL .
  3. Remove the Integrated Center Stack (ICS). Refer to MODULE, INTEGRATED CENTER STACK (ICSM), REMOVAL .
  4. Remove the glove box. Refer to GLOVE BOX, INSTRUMENT PANEL, REMOVAL .

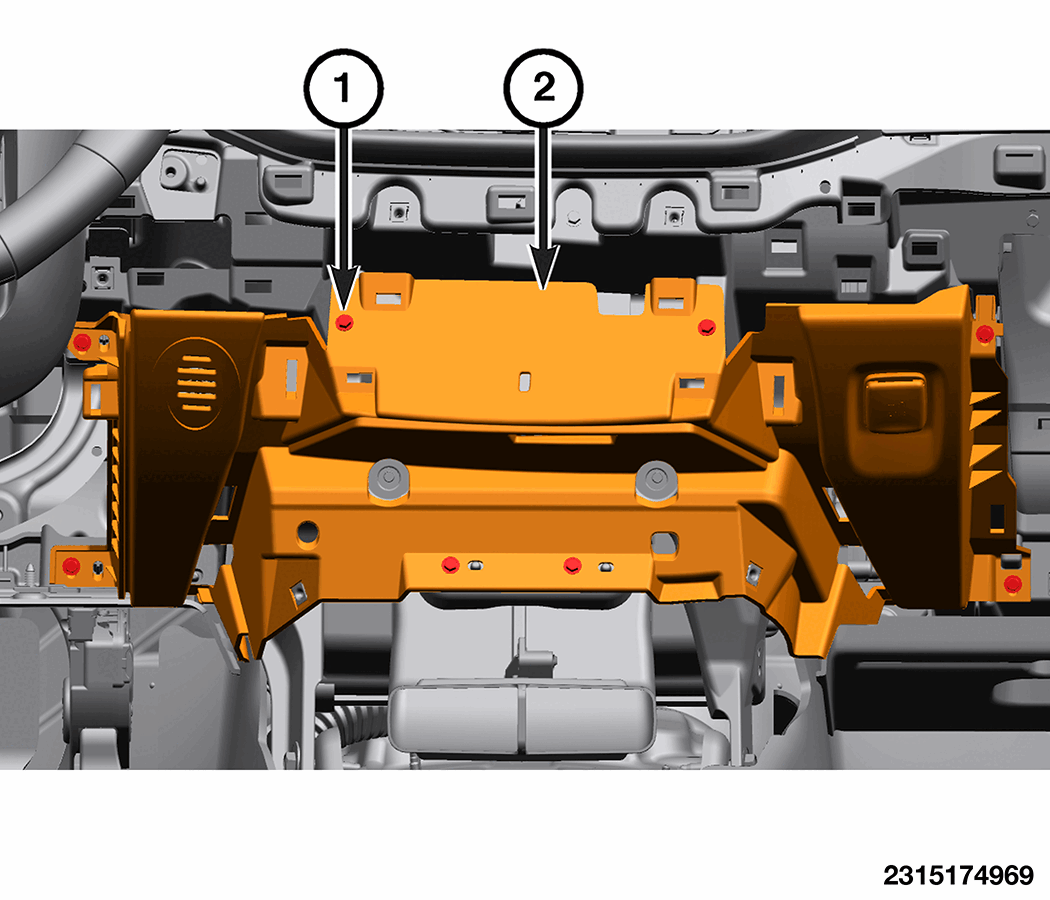

    GC0200517Courtesy of CHRYSLER GROUP, LLC
  5. Remove the fasteners (1) from the center closeout panel (2).
  6. Disconnect the wire harness connectors and remove the center closeout panel (2) from vehicle.
