Hinge, Hood: Removal

Courtesy of CHRYSLER GROUP, LLC

NOTE:

It is not necessary to remove the hood to replace the hood hinges. Hood hinges can be replaced one at a time.

Using a grease pencil or equivalent, mark the position of the hood hinge on the hood and body for the hinge being serviced.

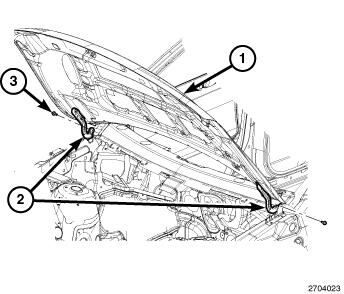

Remove the bolts that secure the hood hinge (2) to the hood (1).
Remove the bolt that secures the hood hinge (3) to the front fender.
