Cable, Hood Release: Removal

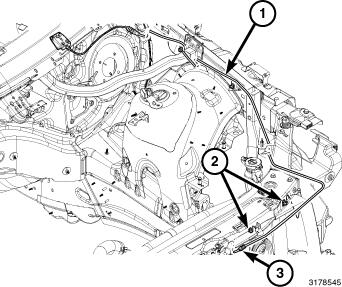

GC0208965Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect the cable (3) from the hood latch.
  2. Remove release cable (1) from the cable retainers (2).

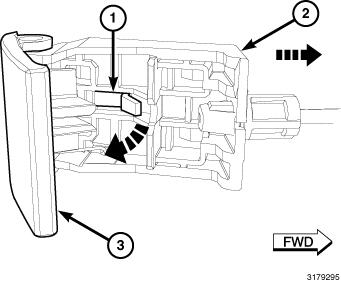

    GC0208963Courtesy of CHRYSLER GROUP, LLC
  3. From the inside of the vehicle, pull down the hood release handle (3), release the retaining tab (1) and slide the handle assembly (2) forward to release from the steering column opening cover.

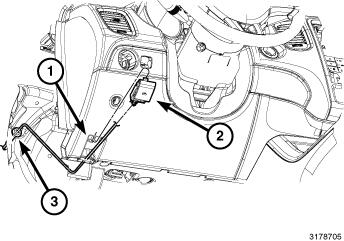

    GC0208964Courtesy of CHRYSLER GROUP, LLC
  4. Separate the grommet (3) from the cowl panel and remove the hood release cable and handle assembly (2).
