Description
Shield, Splash, Wheelhouse: Description
Courtesy of CHRYSLER GROUP, LLC

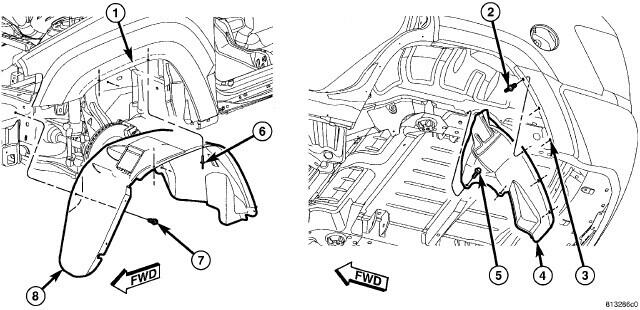

1 - FENDER
2 - RIVETS
3 - REAR FASCIA
4 - QUARTER PANEL LINER
5 - SCREWS (2)
6 - RIVETS
7 - SCREWS (2)
8 - FENDER LINER
Courtesy of CHRYSLER GROUP, LLC
