Housing, Fuel Fill: Removal
- Loosen the fuel filler tube at the top to allow movement of the tube. Refer to TUBE, FUEL TANK FILLER, REMOVAL .
- Open the fuel fill door.

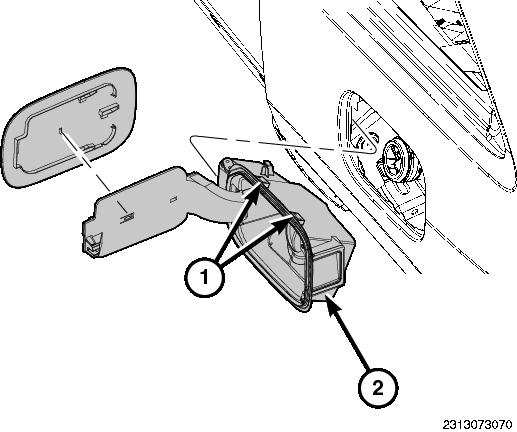

- Going through the wheel well, use a trim stick or equivalent, and release the four clips (1) and remove the fuel filler housing (2).
- Disconnect the drain tube from fuel filler housing.
