Body - Interior And Exterior (1 Of 2): Exterior: Grille: Removal

Courtesy of CHRYSLER GROUP, LLC

REMOVAL - UPPER

1. Remove the front fascia assembly. Refer to FASCIA, FRONT, REMOVAL .

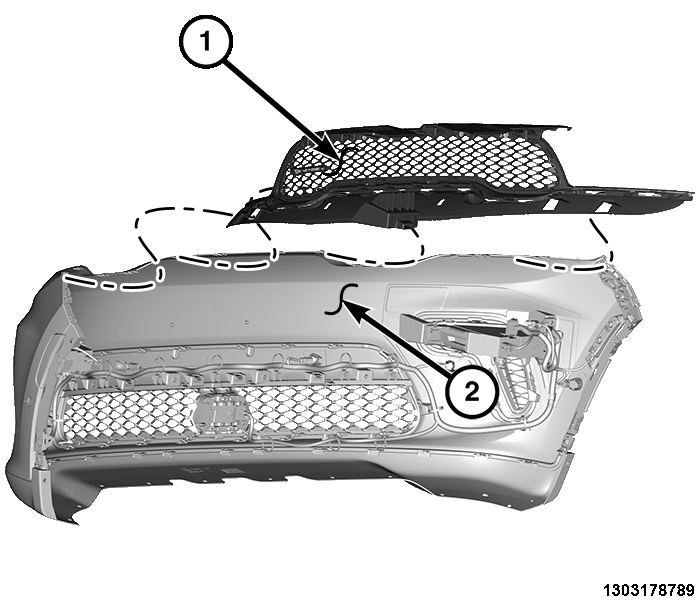

2. Release the tabs (2).

   Courtesy of CHRYSLER GROUP, LLC

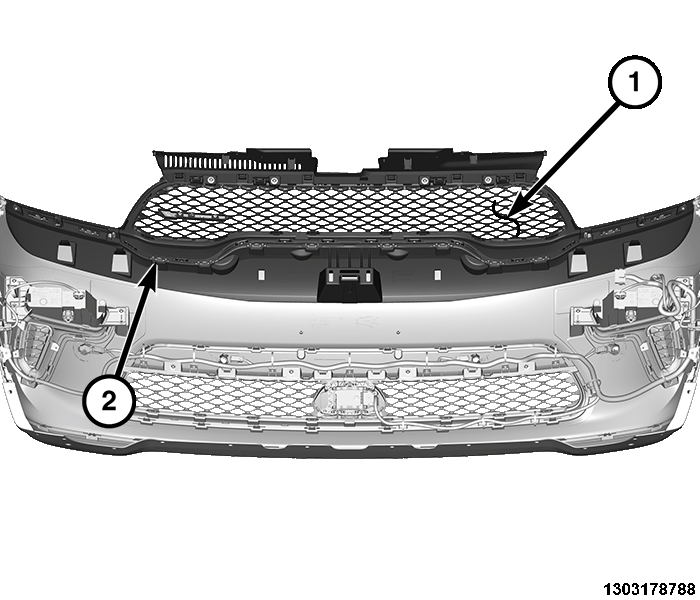

3. Remove the upper grille (1).

Courtesy of CHRYSLER GROUP, LLC

REMOVAL - LOWER

1. Remove the front fascia. Refer to FASCIA, FRONT, REMOVAL .

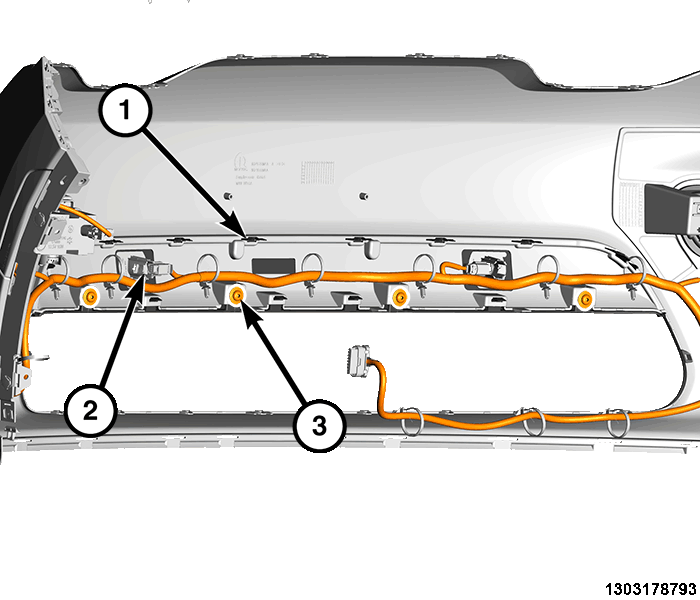

2. Release the attachment clips (2) and remove the lower grille (1).
3. Remove the fasteners (1) and remove the energy absorber (2).

   Courtesy of CHRYSLER GROUP, LLC

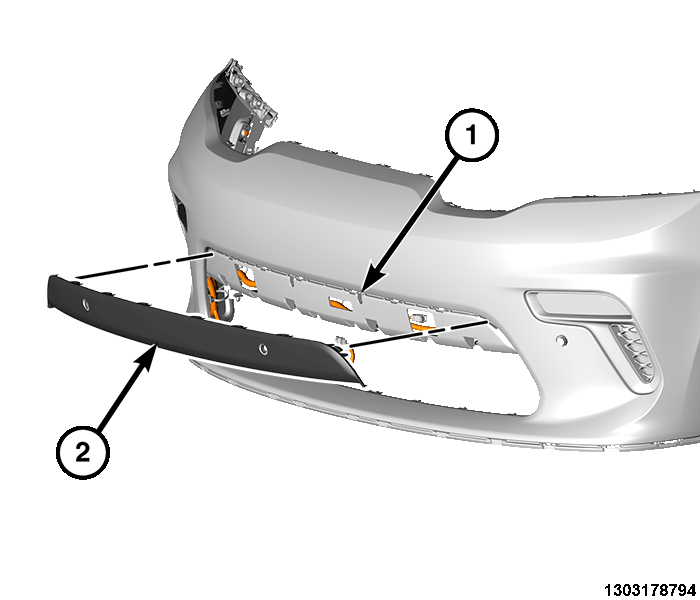

4. Remove the lower grille and bezel assembly (2).

Courtesy of CHRYSLER GROUP, LLC

REMOVAL - SIDE

1. Remove the front fascia. Refer to FASCIA, FRONT, REMOVAL .
2. Remove the fog lamps. Refer to LAMP, FOG, FRONT, REMOVAL .

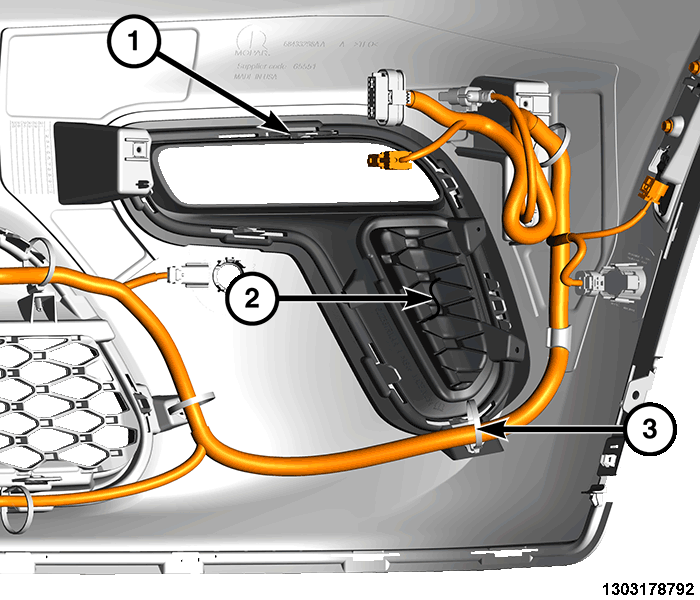

3. Release the wire harness supports (3).
4. Release the tabs (1) and remove the grille (2).
