Body - Interior And Exterior (1 Of 2): Exterior: Nameplate: Removal

Courtesy of CHRYSLER GROUP, LLC

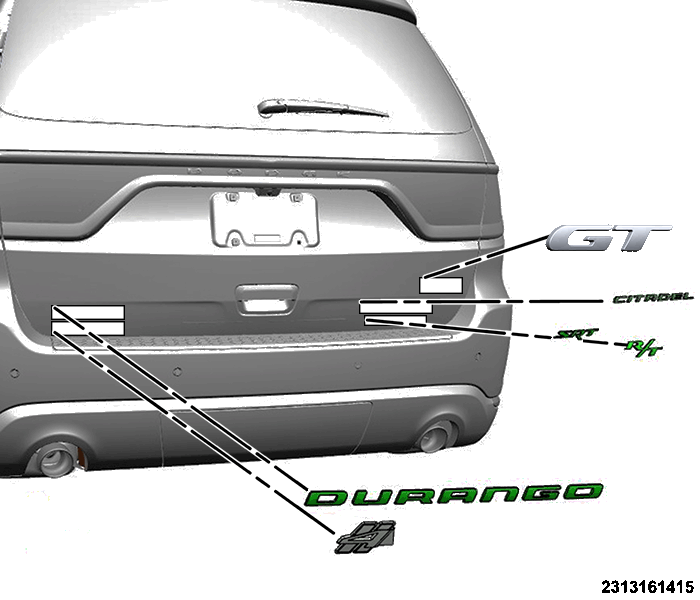

REMOVAL - REAR NAMEPLATES

As a guide for installation, apply a length of masking tape on the body, parallel to the top edge and to one end of the name plate or decal being removed.
CAUTION:
Do not exceed 52° C (120° F) when heating nameplates, decals or body panels. Failure to follow this caution may result in damage to the nameplates, decals or the vehicle paint finish.
If the temperature is below 21° C (70° F), warm the name plate or decal with a heat lamp or heat gun.
NOTE:
The exterior name plates are attached to the body with adhesive tape.
Using a trim stick (special tool #C-4755, Trim Stick) or equivalent, carefully remove the name plate or decal from the body panel, as necessary.

Courtesy of CHRYSLER GROUP, LLC

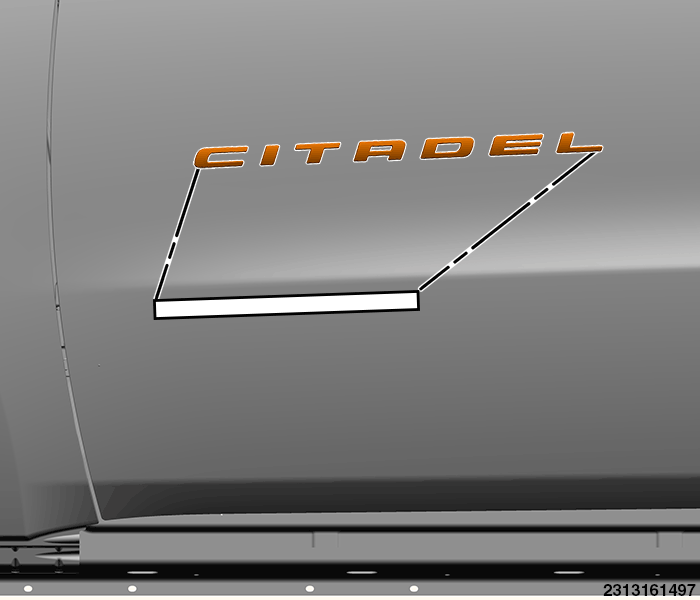

REMOVAL - SIDE DECALS

As a guide for installation, apply a length of masking tape on the body, parallel to the top edge and to one end of the name plate or decal being removed.
CAUTION:
Do not exceed 52° C (120° F) when heating nameplates, decals or body panels. Failure to follow this caution may result in damage to the nameplates, decals or the vehicle paint finish.
If the temperature is below 21° C (70° F), warm the name plate or decal with a heat lamp or heat gun.
NOTE:
The exterior name plates are attached to the body with adhesive tape.
Using a trim stick or equivalent, carefully remove the name plate or decal from the body panel, as necessary.

Courtesy of CHRYSLER GROUP, LLC

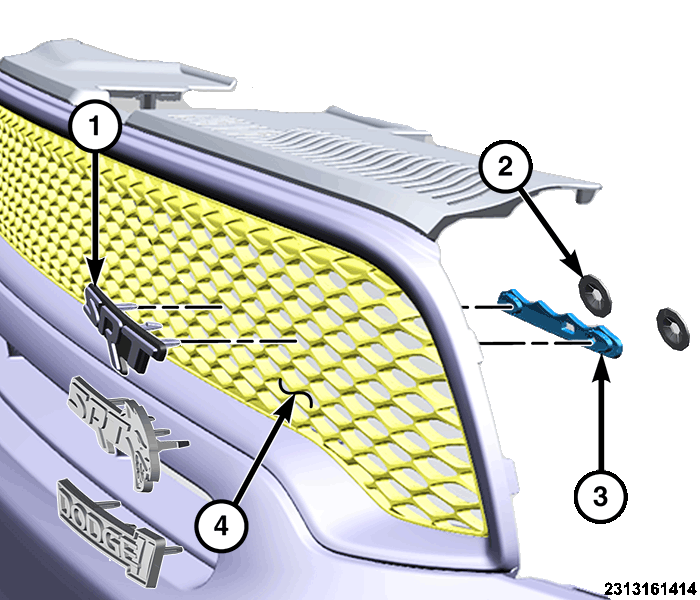

REMOVAL - GRILLE PLATE

Remove the front fascia. Refer to FASCIA, FRONT, REMOVAL .
Release the pal nuts (2) and separate the nameplate (1) from the adapter plate (3) and the grille (4).
