Fender, Front: Removal

  1. Using a grease pencil, mark the location of the fender.
  2. Remove wheel and tire assembly if necessary.
  3. Remove the wheel liner (2) as needed. Refer to SHIELD, SPLASH, WHEELHOUSE, REMOVAL .
  4. Remove front fascia as necessary. Refer to FASCIA, FRONT, REMOVAL .

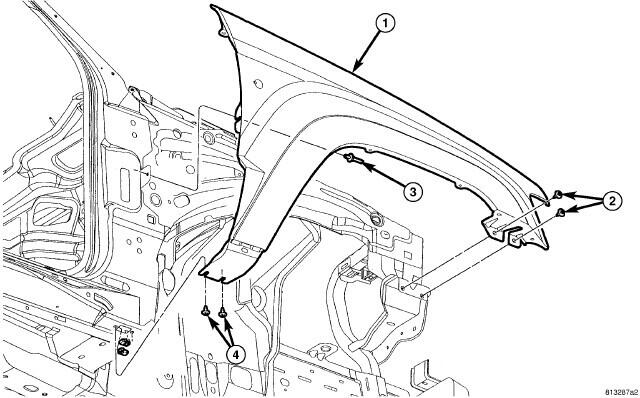

    GC0208977Courtesy of CHRYSLER GROUP, LLC
  5. Remove front lower mounting bolts.
  6. Loosen rocker panel cover as necessary.
  7. Remove rear lower mounting bolts.

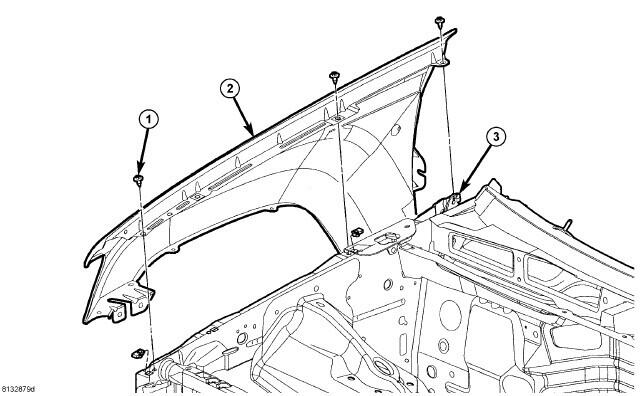

    GC0208976Courtesy of CHRYSLER GROUP, LLC
  8. Remove upper fender mounting bolts.
  9. Remove fender from vehicle.
