Applique, B-Pillar, Front: Removal

Courtesy of CHRYSLER GROUP, LLC

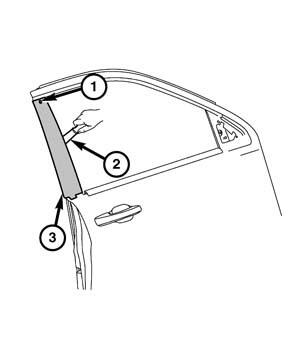

The B-pillar applique (3) is set with two sided adhesive tape and clips. The temperature in the work area and the vehicle should be at least 21° C (70° F) to avoid damaging the applique.

1. Remove the outer belt molding. Refer to MOLDING, DOOR BELT, OUTER, REMOVAL .
2. Use a putty knife (2) or equivalent, along the edges of the applique (3) to cut the two sided tape.
3. Use trim tool (special tool #C-4829A, Remover, Trim), or equivalent to release to release the spring retainers.
4. Remove the applique (3) from the door.
5. Remove adhesive tape residue from painted surface of vehicle. Use a 3M Scotch-Brite™ Molding Adhesive and Stripe Removal Discs, or equivalent, to clean adhesive residue from painted surfaces. The adhesive removal discs are available from automotive paint suppliers. Refer to instructions supplied with the discs for proper usage.
