DECKLID/Hatch/Liftgate/Tailgate/Swing Gate: Spoiler: Removal

Courtesy of CHRYSLER GROUP, LLC

1. Remove the header trim (3).
2. Disconnect the wire harness connector to the courtesy light (2), if equipped.

   Courtesy of CHRYSLER GROUP, LLC

3. Disconnect the washer solvent supply hose and the wire harness connector (2).

   Courtesy of CHRYSLER GROUP, LLC

4. Remove the liftgate trim panels (2). Refer to PANEL, TRIM, REMOVAL .

   Courtesy of CHRYSLER GROUP, LLC

5. Remove the nuts (1).

   Courtesy of CHRYSLER GROUP, LLC

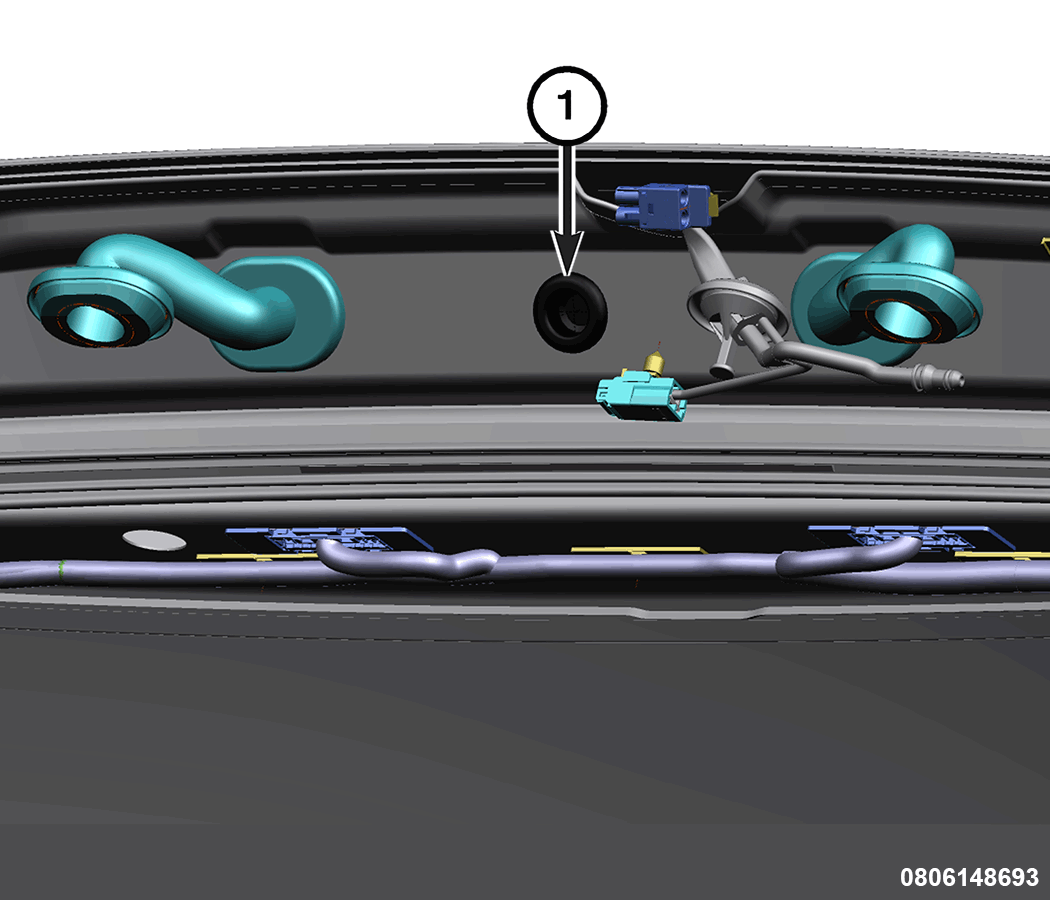

6. Remove grommet (1) from liftgate.

   Courtesy of CHRYSLER GROUP, LLC

7. Squeeze plastic retainer clip tabs (1) through access hole to release spoiler.
8. Lower the liftgate.
9. Pivot the spoiler towards the front of the vehicle.
10. Separate the washer solvent grommet.
11. Remove spoiler from vehicle.
