Bulb - Front

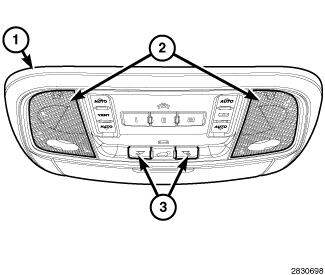

The front dome and reading lamps are integral to the overhead console (1) in the headliner near the windshield. Both the incandescent dome lamps and the Light Emitting Diode (LED) reading lamps share the same two lenses (2) in the overhead console. Both the dome lamps and the reading lamps are turned ON and OFF by the door ajar switches or by the interior lighting thumb-wheel of the headlight switch. The front dome lamps can be turned ON independently by depressing the lamp lenses, while the front reading lamps are turned ON or OFF independently by the two reading lamp push button switches (3). The incandescent dome lamp bulbs are serviceable; however, the LED reading lamps as well as all of the switches, lamp housings, lenses and wiring are serviced only as a unit with the overhead console assembly.
