Switch, Remote Radio: Removal

WARNING:

To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.

NOTE:

With paddle shift shown, without paddle shift similar.

Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
Remove the driver air bag
Refer to AIR BAG, DRIVER, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC

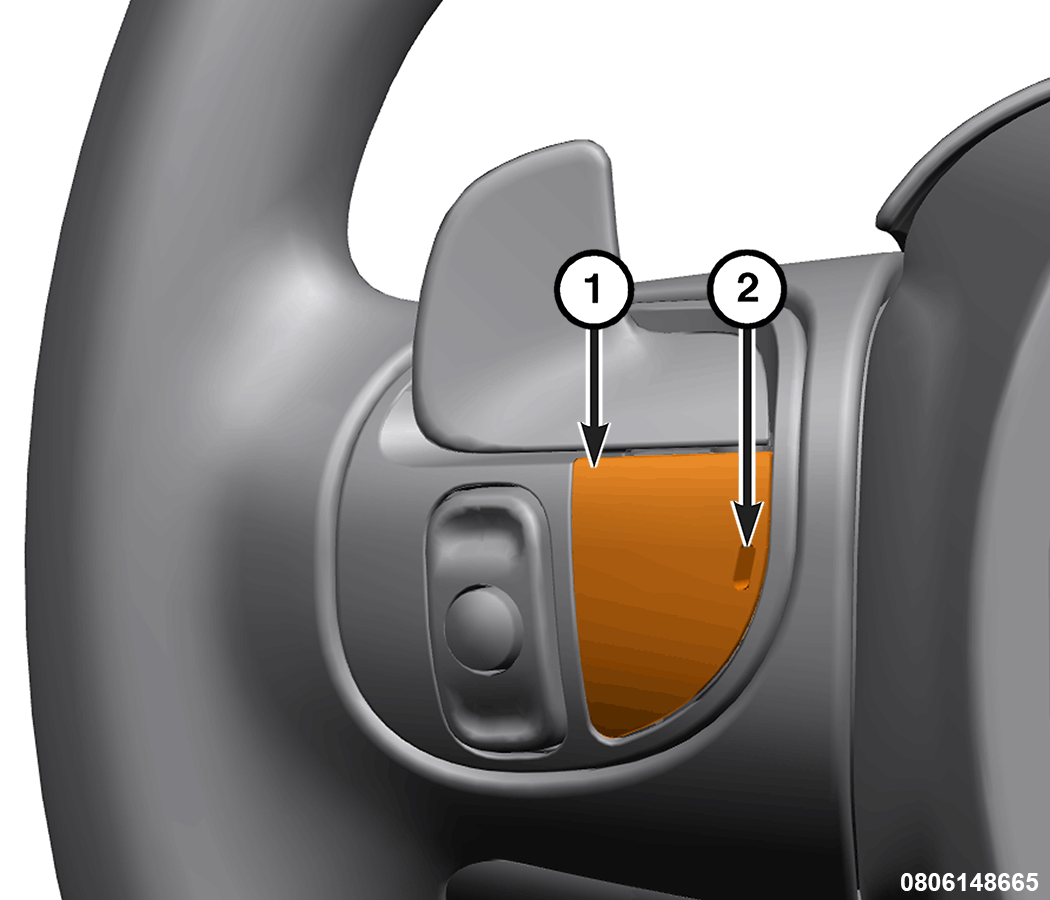

From the back of the steering wheel, remove the left and right remote radio switches with a paddle shift unit cover (1) from the switch by inserting a small flat screwdriver or equivalent into the slot (2) and prying outward.

Courtesy of CHRYSLER GROUP, LLC

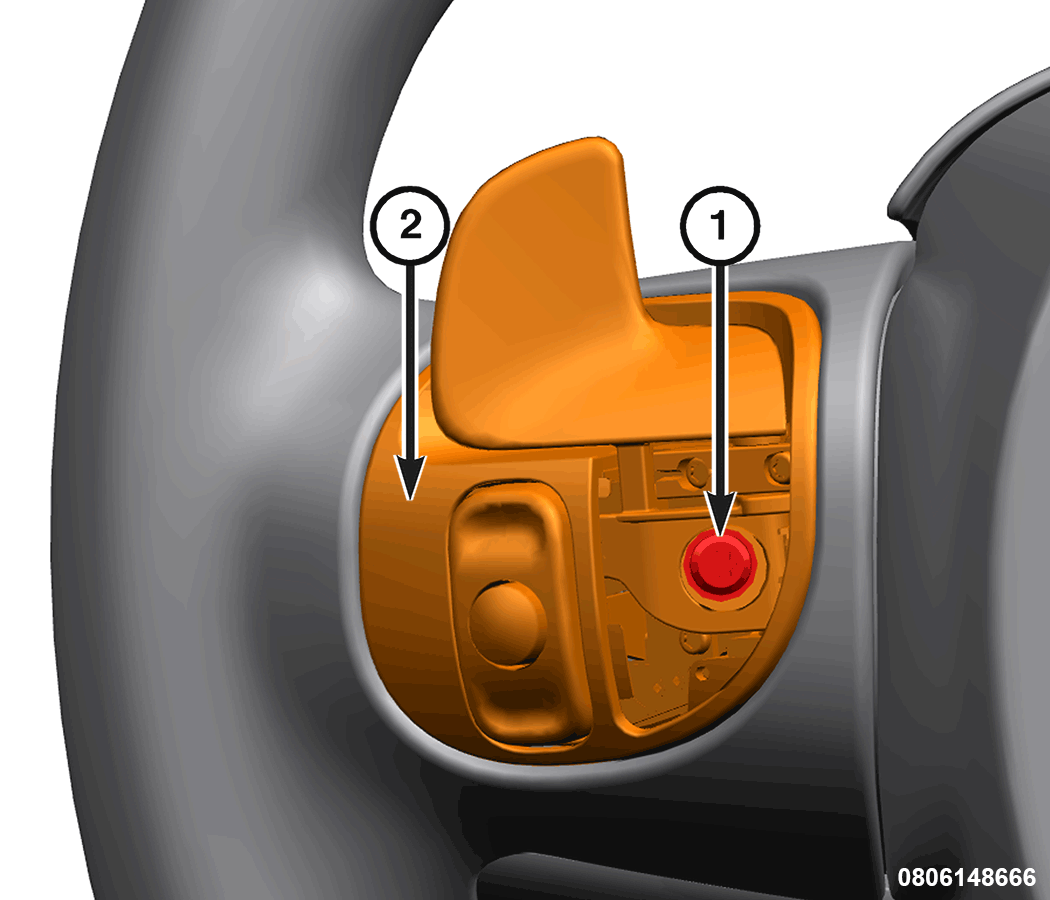

Remove the left and right remote radio switches (2) retaining screw (1).

Courtesy of CHRYSLER GROUP, LLC

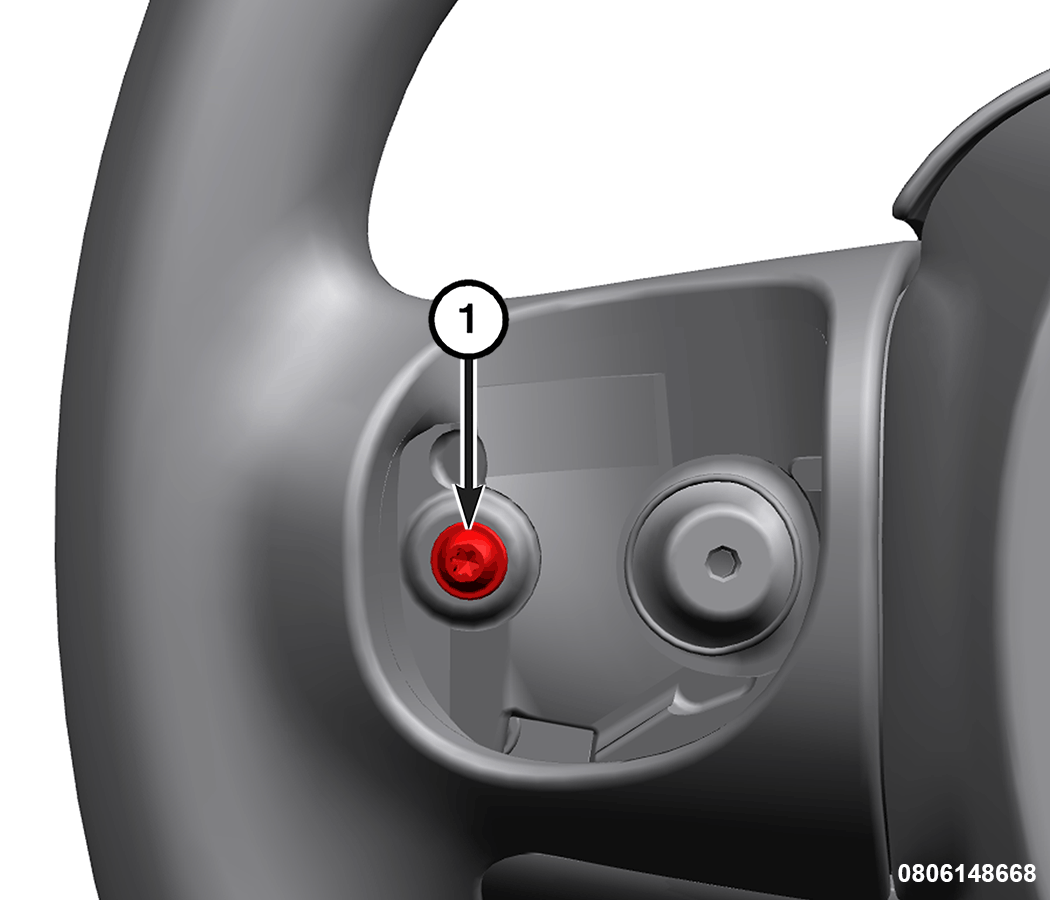

Gently remove the left and right switches from the steering wheel, to gain access to the steering wheel bezel retaining screw (1).
Remove the left and right steering wheel bezel retaining screws.

Courtesy of CHRYSLER GROUP, LLC

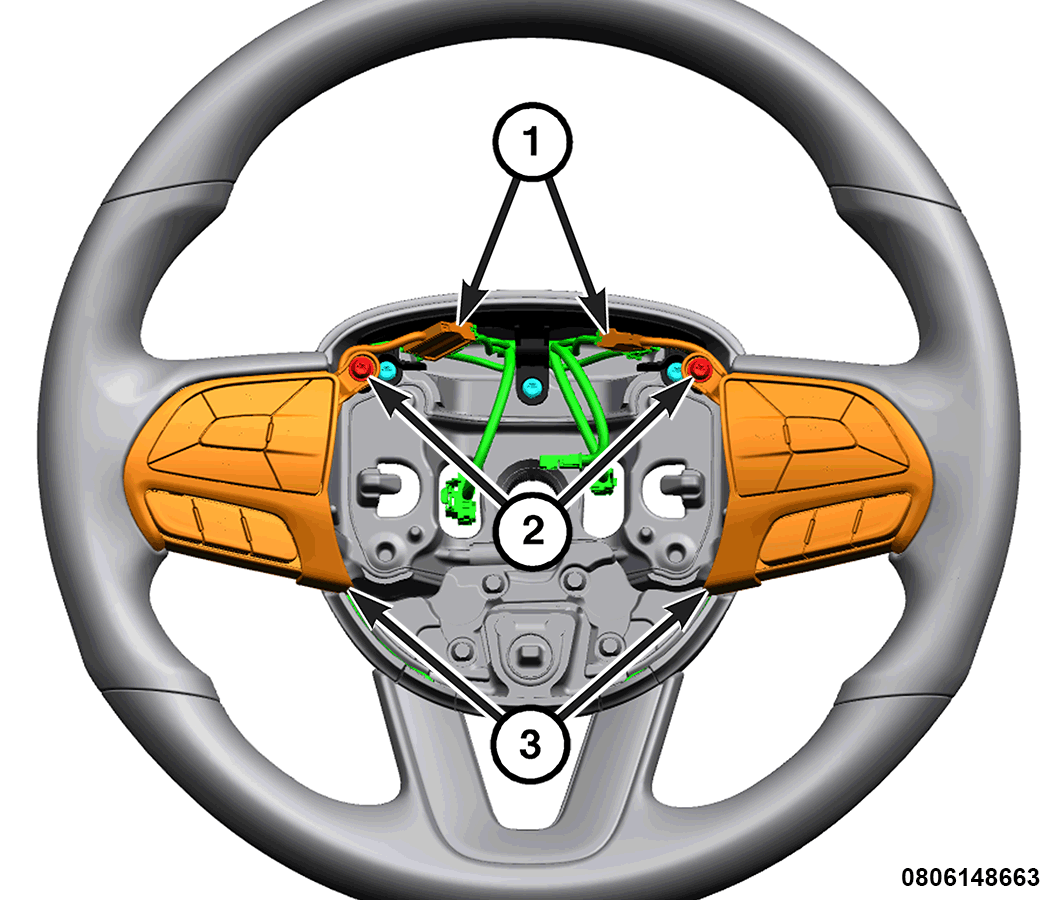

Disconnect the wire harness connectors (1). Remove the screws (2) and remove the Electronic Vehicle Information Center (EVIC) switches (3).
Disconnect wire harness connectors for the remote radio switches and feed harness through holes in steering wheel to remove switches.

Courtesy of CHRYSLER GROUP, LLC

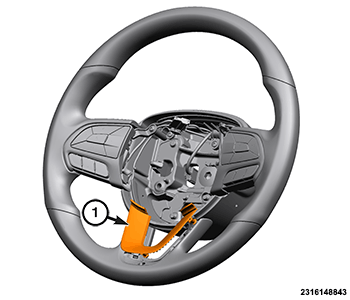

If EVIC wire harness needs to be removed, Use a trim stick or equivalent remove the center lower trim (1) from the steering wheel.

Courtesy of CHRYSLER GROUP, LLC

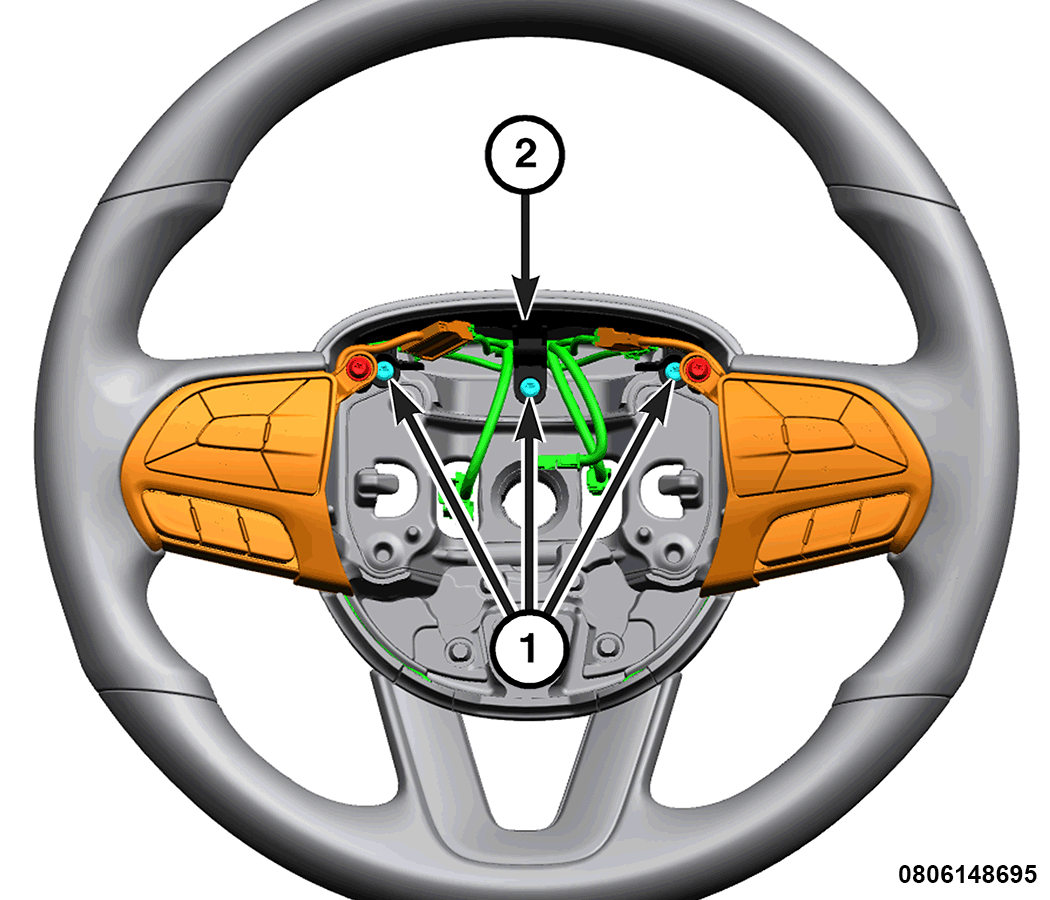

From the front of the steering wheel, remove the retaining screws (1) that retain the wire harness bracket (2).

Courtesy of CHRYSLER GROUP, LLC

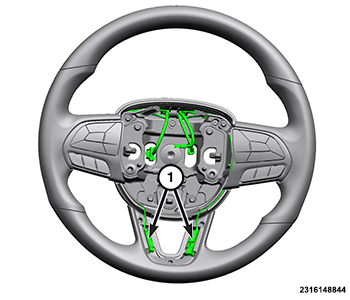

If equipped with heated steering wheel, disconnect wire harness connectors (1) and remove the Electronic Vehicle Information Center (EVIC) switch electrical harness.
