Media Hub: Description

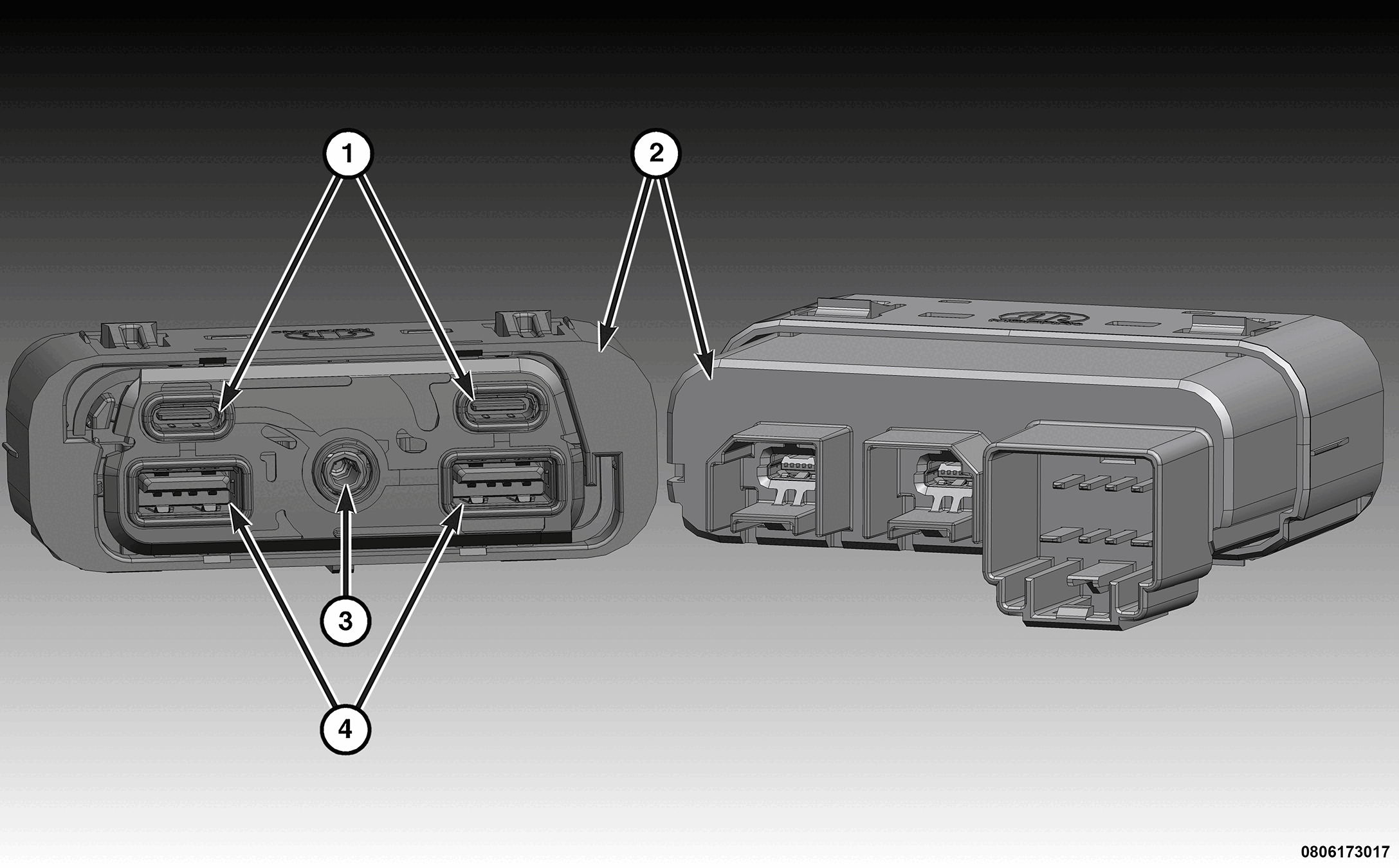

The media hub (2) is located within the front storage bin of the center floor console, below the Integrated Center Stack (ICS) module.
The media hub is a centralized media connection point on the vehicle that contains:
- 3.5 mm auxiliary input jack (3)
- two type-A (4) and two type-C (1) Universal Serial Bus (USB) ports
The media hub USB ports provide 5-volts at 2.5 amps to charge the media device battery for up to 60 minutes after the ignition switch is turned to the OFF position. The media hub is illuminated and dimmable, and incorporates the Apple Carplay and Google Android Auto features for the audio system.
For additional information, refer to the Uconnect® Access User's Manual.
