Camera, Rear: Removal

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the lamp bar to gain access to the rear camera. Refer to LAMP BAR, EXTERIOR HANDLE, REMOVAL .

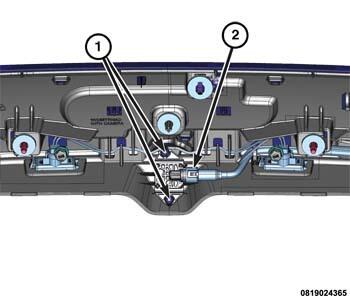

    GC0158356Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the electrical harness connector (2).
  4. Remove the rear camera mounting fasteners (1).
  5. Remove the rear camera from the lamp bar.
