Sensor, Axle: Removal: Rear

Courtesy of CHRYSLER GROUP, LLC

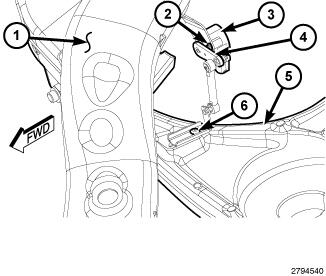

NOTE:

The graphic illustrates the left rear axle sensor installed. The installed right rear axle sensor is similar.

Disconnect and isolate the battery negative cable.
Raise and support the vehicle.
Locate the rear axle sensor (3) on a bracket between the rear suspension cradle (1) and the rear suspension lower control arm (5).
Disconnect the wiring harness connector from the rear axle sensor.
Remove the Rear Axle Sensor Mounting Screw (6) securing the sensor link bracket to the rear lower control arm.
Remove the rear axle sensor, bracket and link from the vehicle as a unit.
