Sensor, Axle: Removal: Front
NOTE:

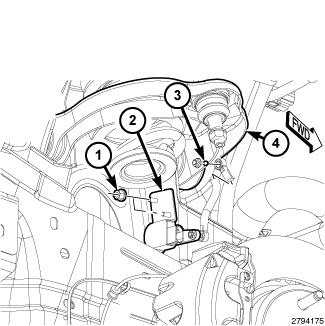

The graphic illustrates the right front axle sensor installed. The installed left front axle sensor is similar.
- Disconnect and isolate the battery negative cable.
- Raise and support the vehicle.
- Locate the front axle sensor (2) within the front fender wheel house.
- Disconnect the wiring harness connector from the front axle sensor.
- Carefully unsnap the upper end of the front axle sensor link from the ball stud (3) on the forward-facing side of the front suspension upper control arm (4).
- Remove the Front Axle Sensor Mounting Nuts (1) securing the sensor mounting bracket to the two studs on the front end sheet metal.
- Remove the front axle sensor, bracket and link from the vehicle as a unit.
