Lamp, Side Repeater: Installation

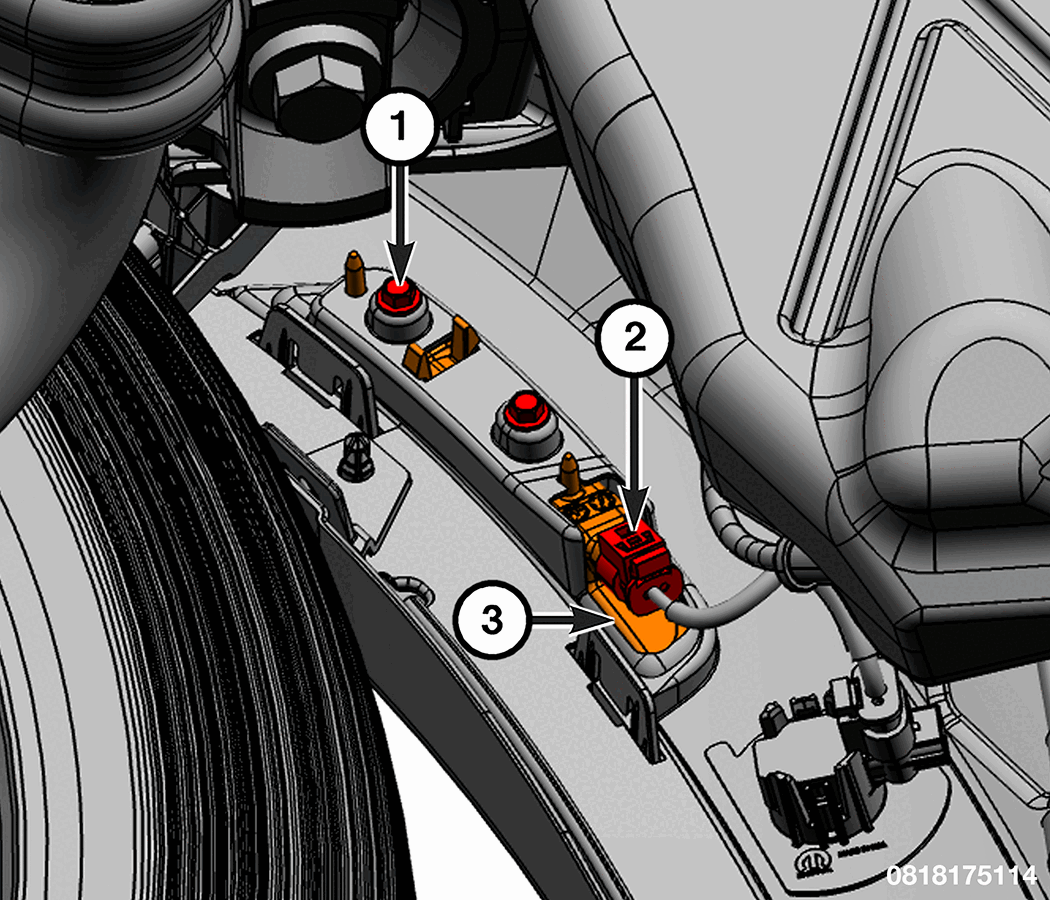

GC0200422Courtesy of CHRYSLER GROUP, LLC
  1. Position the repeater lamp (3) to the fender and connect the wire harness connector (2) to the lamp.
  2. Install the fasteners (1) securing the repeater lamp (3) to the fender and tighten securely.
  3. Install the front left or right wheelhouse splash shield. Refer to SHIELD, SPLASH, WHEELHOUSE, INSTALLATION - FRONT .
  4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
