Lamp, License Plate: Installation

CAUTION:

Always use the correct bulb size and type for replacement. An incorrect bulb size or type may overheat and cause damage to the lamp, the socket or the lamp wiring.

NOTE:

The following procedure is for replacement of a license plate lamp assembly. The license plate lamps are L.E.D. If any part of these lamps is ineffective or damaged, the entire lamp assembly must be replaced.

Courtesy of CHRYSLER GROUP, LLC

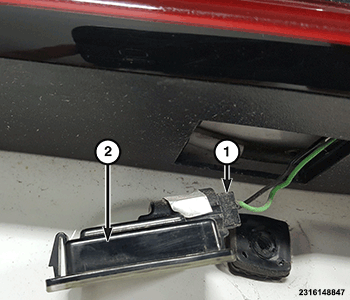

Connect the wire harness connector (1) to lamp assembly (2).

Courtesy of CHRYSLER GROUP, LLC
Position the lens (3) over the lamp housing under the handle and light bar unit (2).
Engage the two tabs on the inboard side of the lens into the slots on the inboard side of the lamp housing.
Push the outboard side of the lens upward until the lens latch tab (1) is fully engaged in the lamp housing.
Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
