Lamp, Fog, Front: Installation

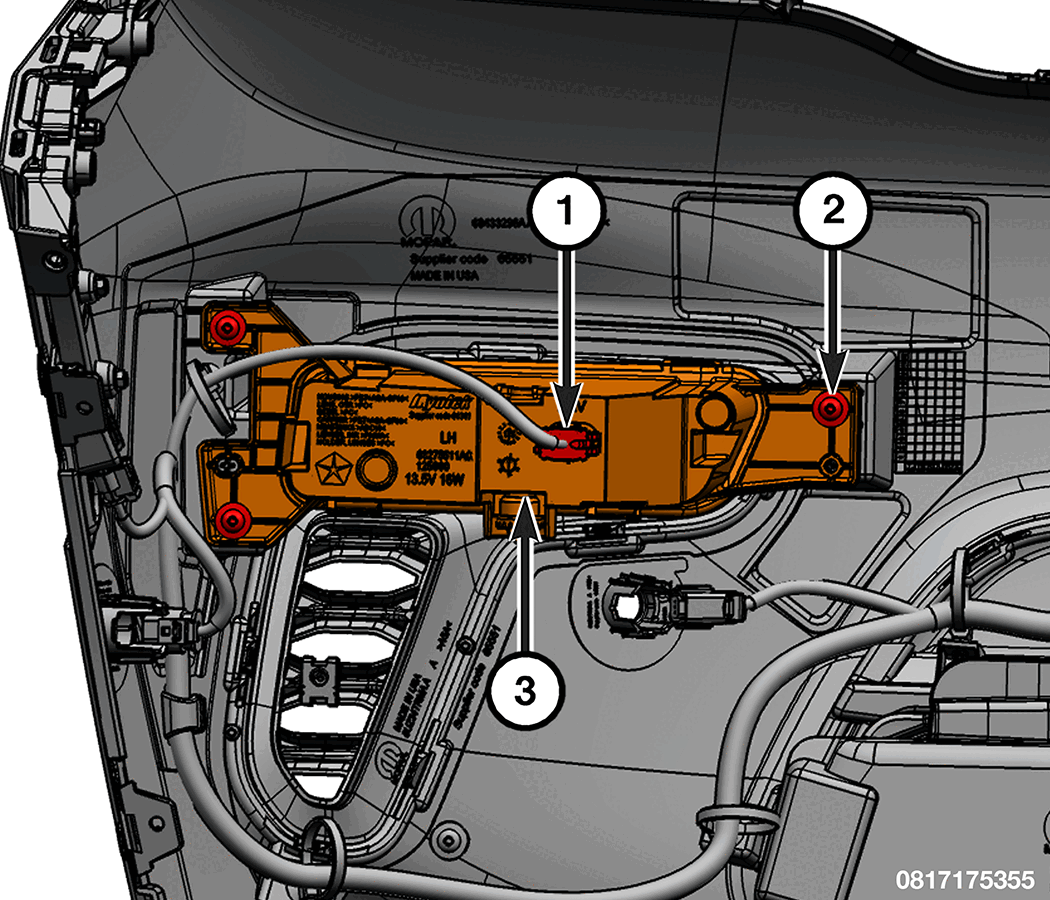

GC0200513Courtesy of CHRYSLER GROUP, LLC
  1. Position the front fog lamp (3) to the back of the front fascia and install the fasteners (2) securing the lamp to the fascia. Tighten the fasteners securely.
  2. Connect the wire harness connector (1) to the front fog lamp (3).
  3. Position the lower portion of the front wheel house splash shield to the front fascia and reinstall the fasteners that secure the shield to the fascia. Refer to SHIELD, SPLASH, WHEELHOUSE, INSTALLATION - FRONT .
  4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
  5. Confirm proper fog lamp alignment. Refer to FRONT LAMP ALIGNMENT  .
