CUPHOLDER, Instrument Panel: Removal

Courtesy of CHRYSLER GROUP, LLC

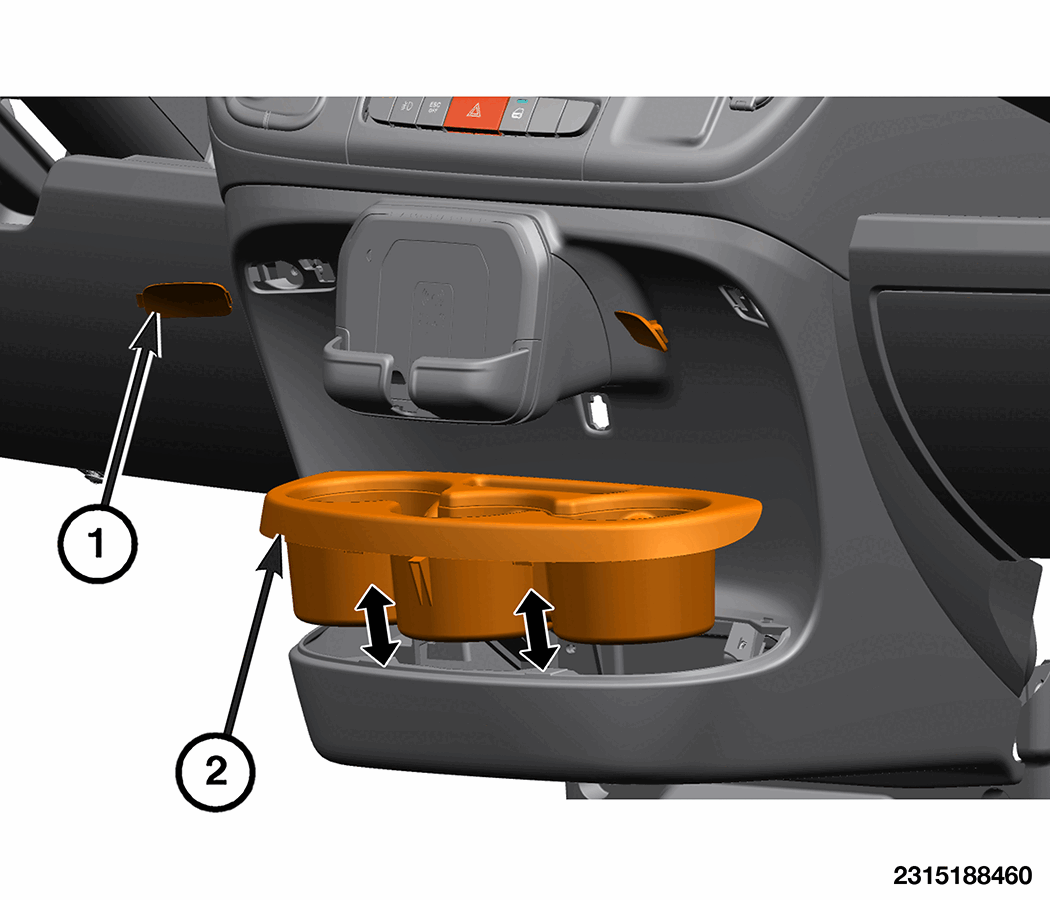

Using a small flat bladed tool, or equivalent remove the fastener covers (1).
Remove the cup holder insert (2).

Courtesy of CHRYSLER GROUP, LLC

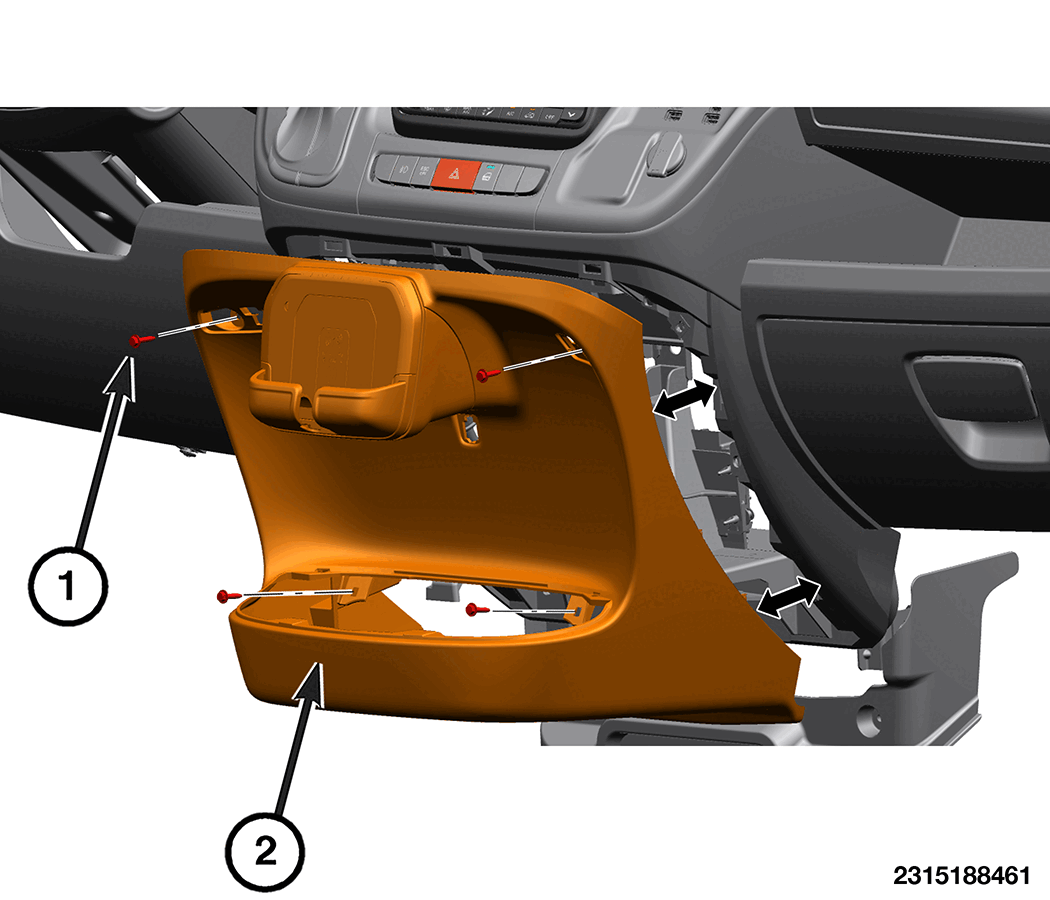

Remove the fasteners (1).
Using (special tool #C-4755, Trim Stick) or equivalent, release the cup holder trim panel (2) from the instrument panel.
Disconnect the wire harness connectors and remove the cup holder trim panel (2) from the vehicle.
