Body - Interior & Exterior: Hood: Removal

Courtesy of CHRYSLER GROUP, LLC

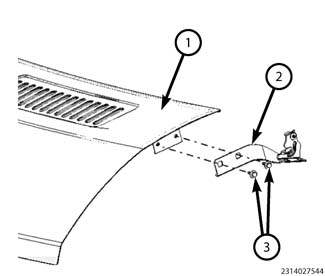

1. Raise hood.
2. Using a grease pencil or equivalent, mark location of hood hinges to aid installation.
3. Remove bolts (3) attaching hinges (2) to hood (1).
4. With the aid of a helper, remove hood from vehicle.
