Instrument Panel Trim Panel

REMOVAL

Courtesy of CHRYSLER GROUP, LLC

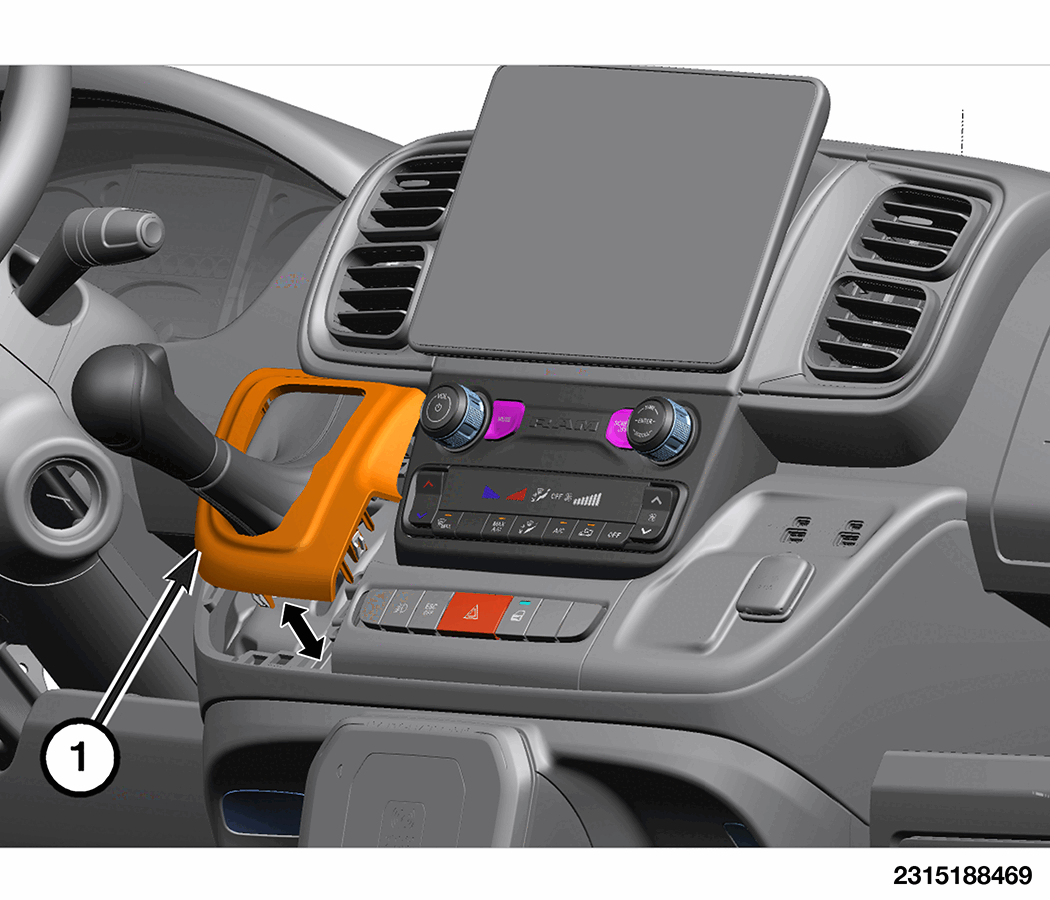

1. Using a trim stick or equivalent, release the shifter bezel (1) from the instrument panel and position up the shifter handle.

   Courtesy of CHRYSLER GROUP, LLC

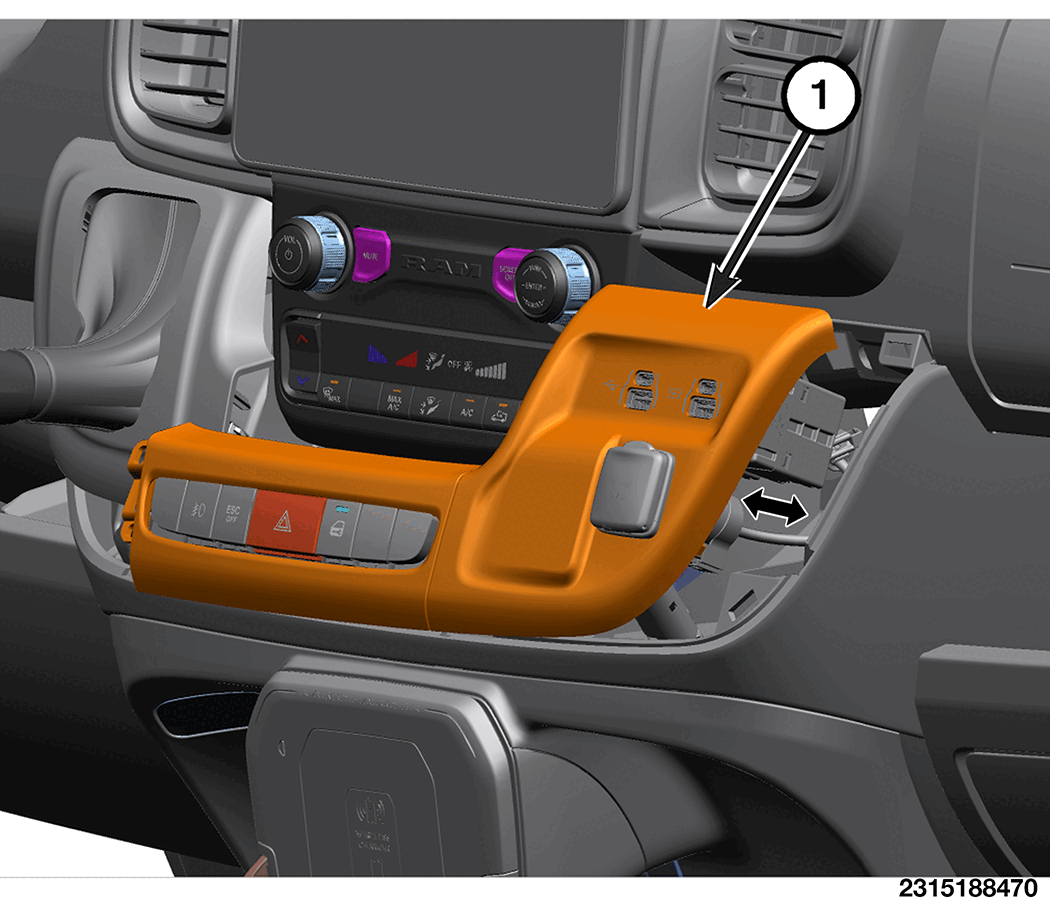

2. Using a trim stick or equivalent, release the instrument panel trim panel (1) from the instrument panel.
3. Disconnect the wire harness connectors and remove the instrument panel trim panel (1).
