Panel, C-Pillar Trim: Removal

Courtesy of CHRYSLER GROUP, LLC

Remove the screw (1) that secures the rear outboard seat belt (4) lower anchor and the rear seat back bracket (2) to the rear floor panel (3).

Courtesy of CHRYSLER GROUP, LLC
Position the door seal (1) aside.

Courtesy of CHRYSLER GROUP, LLC
Remove the quarter trim panel. Refer to PANEL, QUARTER TRIM, REMOVAL .

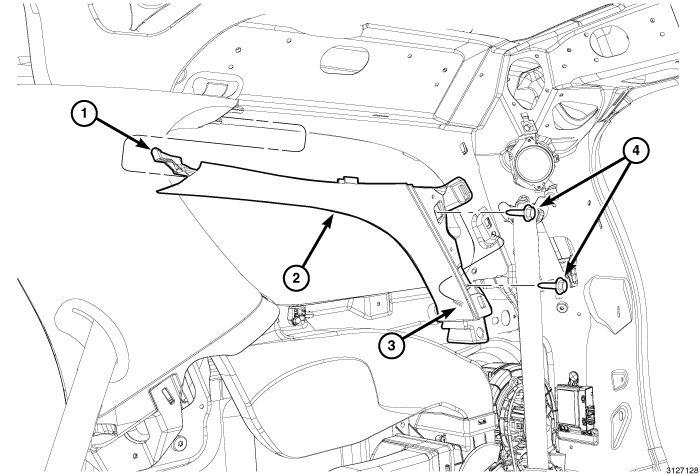

Remove the trim screws (4).
Using a trim stick (special tool #C-4755, Trim Stick) or equivalent, disengage the retaining clips that secure the side upper headliner trim (2) to the body.
Release the tether from the trim and remove the headliner trim (2).

Courtesy of CHRYSLER GROUP, LLC

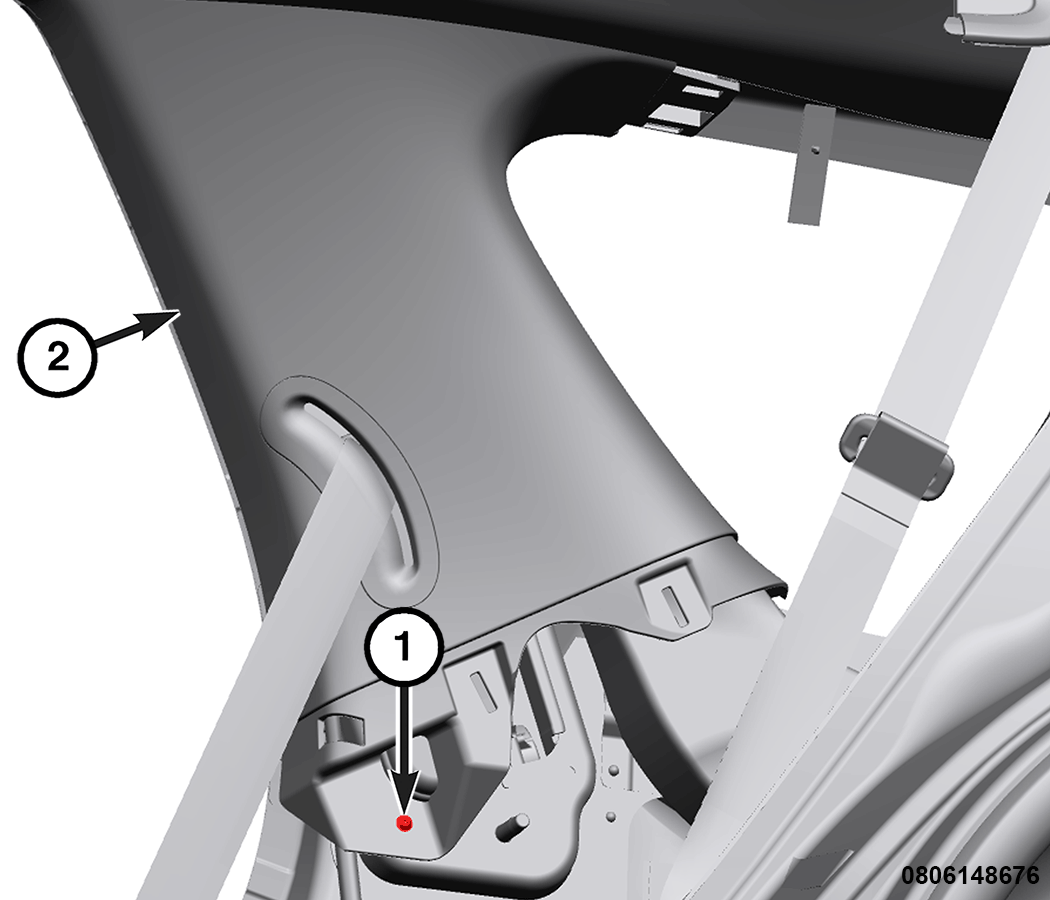

Remove screw (1) from C-Pillar trim panel (2).
Using a trim stick (special tool #C-4755, Trim Stick) or equivalent, disengage the retaining clips that secure the C-pillar trim to the pillar and remove the trim panel.
Remove the seat belt from the trim.
