Panel, Silencer: Removal

LEFT

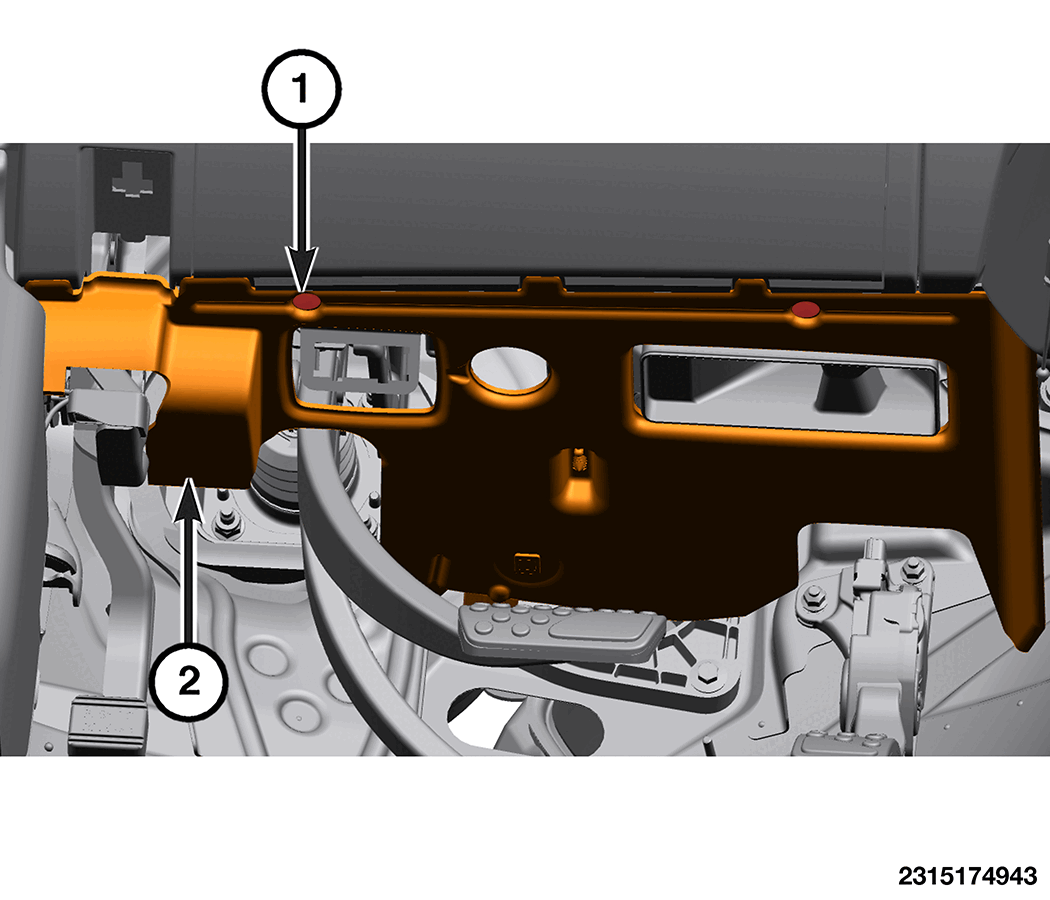

GC0200538Courtesy of CHRYSLER GROUP, LLC
  1. Remove the left silencer panel fasteners (1).
  2. If equipped, disconnect the wire harness connector.
  3. Remove the left silencer panel (2).

RIGHT

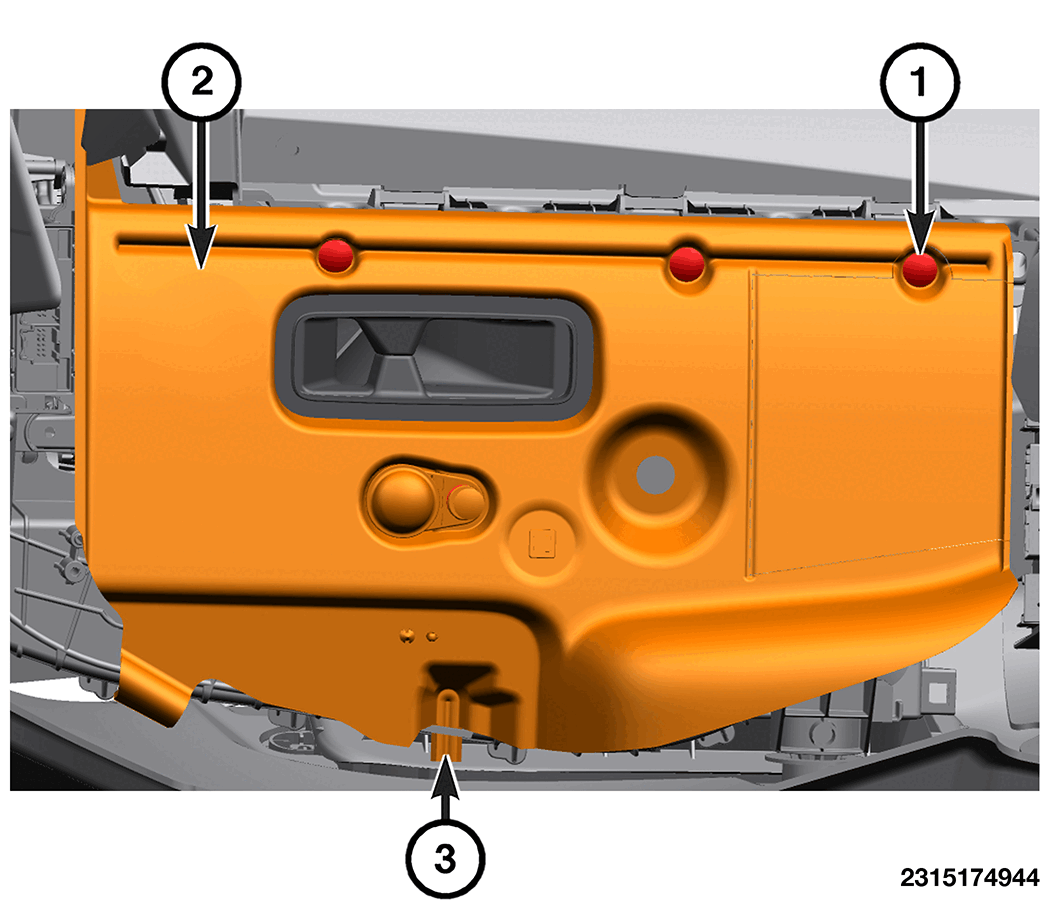

GC0200453Courtesy of CHRYSLER GROUP, LLC
  1. Remove the right silencer panel fasteners (1).
  2. If equipped, disconnect the wire harness connector.
  3. Remove the right silencer panel (2).
