Home >> Dodge and Ram >> 2022 >> Durango SXT Plus, AWD >> Repair and Diagnosis >> Electrical >> Gauges >> Body - Interior & Exterior >> Instrument Panel >> Grille, Defroster >> Removal

Grille, Defroster: Removal

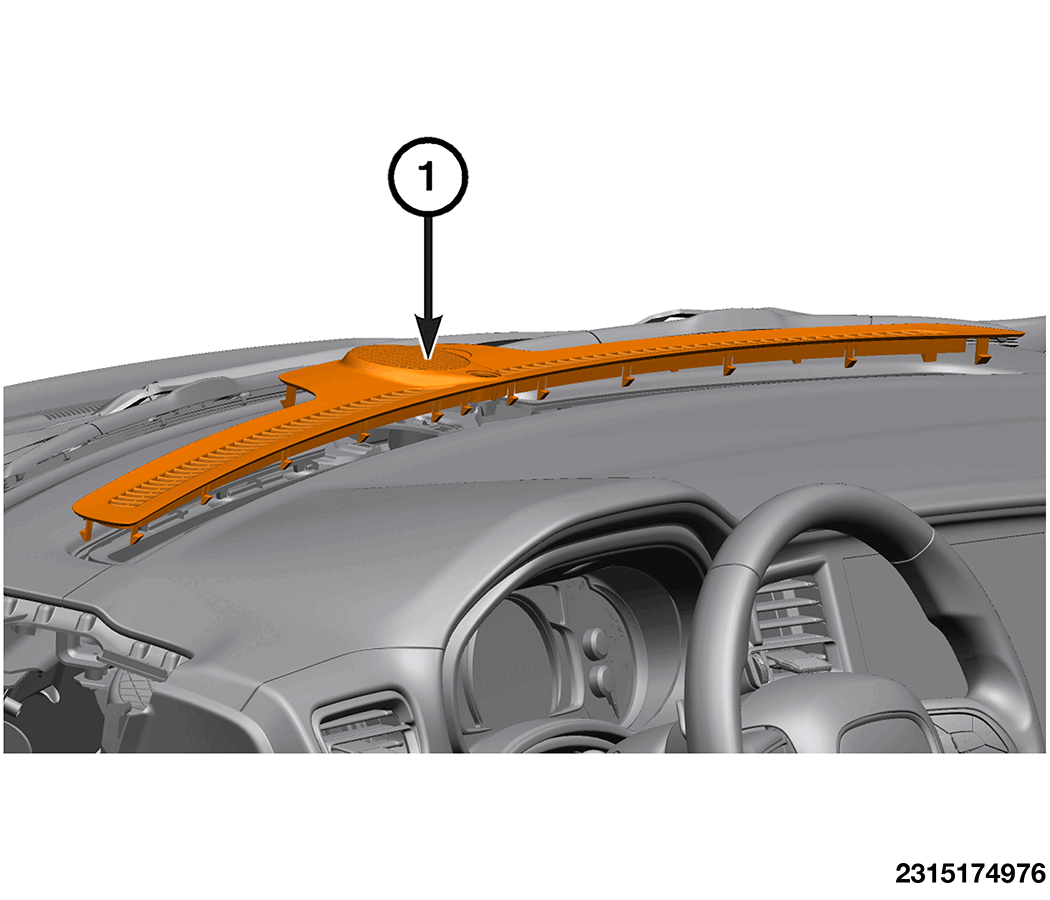

GC0200529Courtesy of CHRYSLER GROUP, LLC
  1. Using a trim stick or equivalent, starting at the outboard edge lift the defroster grill (1).
  2. Disconnect the wire harness connector and remove the defroster grill.
