Monitor, Media System: Removal

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the front seat back panel. Refer to PANEL, SEAT BACK, FRONT, REMOVAL .
  3. Open the video screen to access the mounting fasteners.

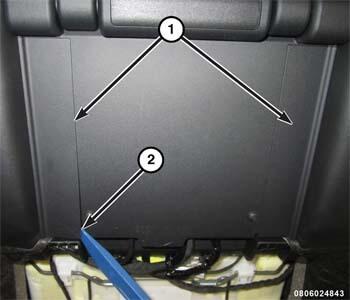

    GC0158352Courtesy of CHRYSLER GROUP, LLC
  4. Starting gently from the bottom (2), remove the mounting fastener trim covers (1).

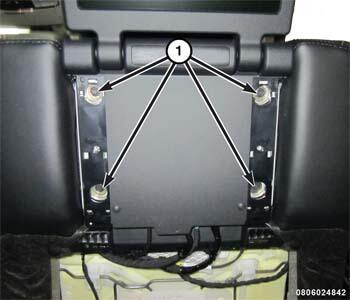

    GC0158365Courtesy of CHRYSLER GROUP, LLC
  5. Remove the mounting fasteners (1).
  6. Disconnect the video monitor connectors and remove the assembly from the vehicle.
