Antenna, Satellite: Installation

CAUTION:

Do not stand on the tire or the bumper while servicing the antenna. Failure to follow the instructions will cause personal injury or vehicle damage.

Courtesy of CHRYSLER GROUP, LLC

Insert wire harness through hole in roof panel. Press antenna into position until both retainers snap into place.

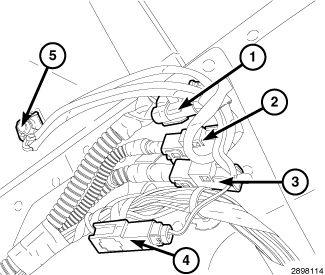

Connect the navigation (1), SDAR (2), AM/FM (3) and the 5 volt power (4) wire harness connectors to the antenna.
Install the fastener (5) and tighten to 6 N.m (53 In. Lbs.).

Courtesy of CHRYSLER GROUP, LLC

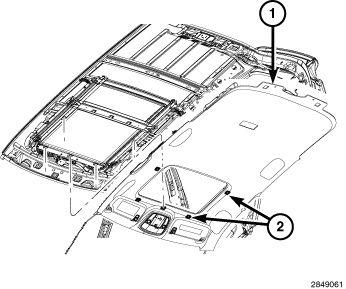

Install the headliner (1). Refer to HEADLINER, INSTALLATION .
Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
