Bucket Seat

NOTE:

It is not necessary to remove the seat from the vehicle.

NOTE:

This procedure is shown in illustration on seats equipped with heated seats.

Courtesy of CHRYSLER GROUP, LLC

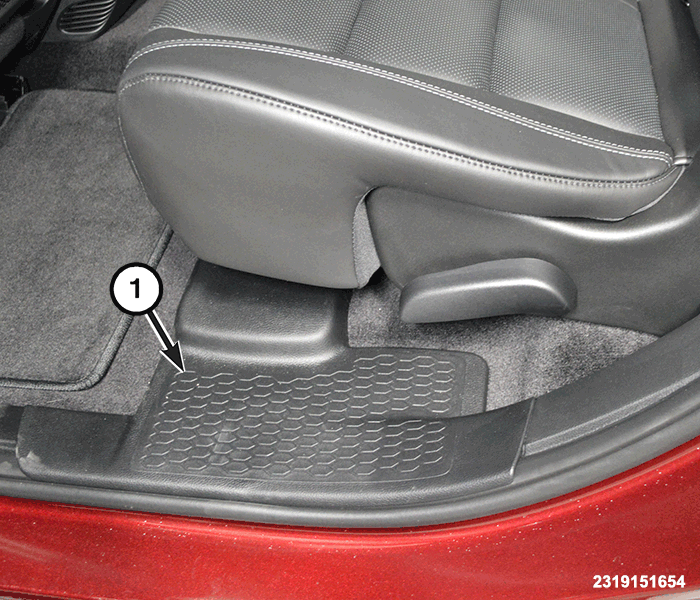

Use a trim tool and remove the sill plate (1).

Courtesy of CHRYSLER GROUP, LLC
Raise the seat. Remove the screw cover and the screw (1). Remove the two screws (2).

Courtesy of CHRYSLER GROUP, LLC
Using a hook tool (2), hook the clip and pull downward. Then pull off the recliner handle (1).

Courtesy of CHRYSLER GROUP, LLC
Use trim tool and remove the outboard side shield (1).

Courtesy of CHRYSLER GROUP, LLC
Separate the inboard side shield (3) from the lower panel (2).
Pull the bottom clips (1) loose and remove the lower panel.
Use a trim tool and remove the inboard side shield.

Courtesy of CHRYSLER GROUP, LLC

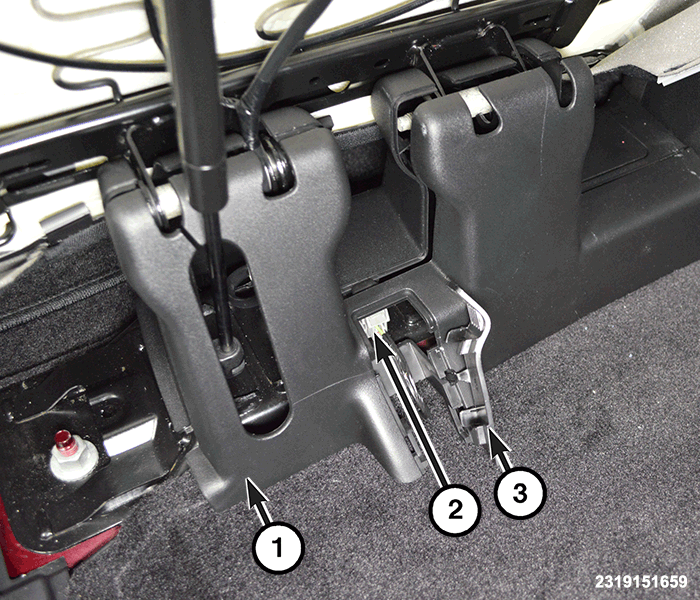

Open the cover plate (3) and disconnect the wire harness connector (2).
Use a trim tool and separate the hinge covers (1).

Courtesy of CHRYSLER GROUP, LLC

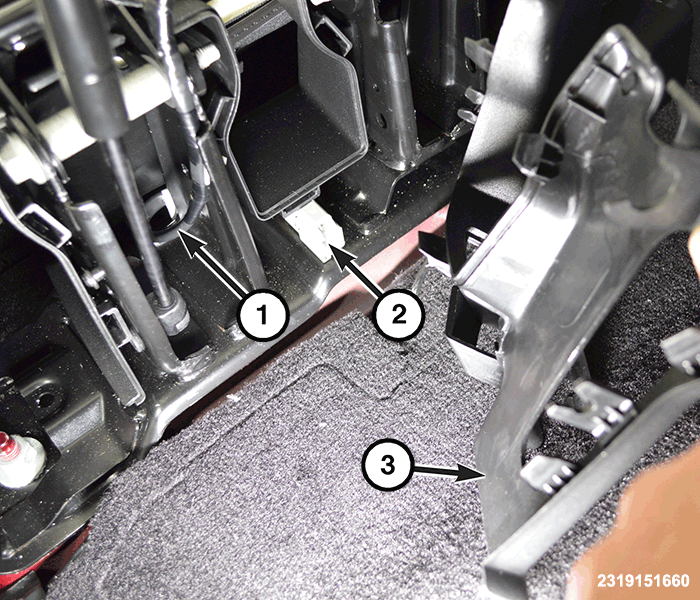

Pull the hinge cover (3) aside, unclip the harness connector (2) from the frame and route the wire harness (1) out.

Courtesy of CHRYSLER GROUP, LLC

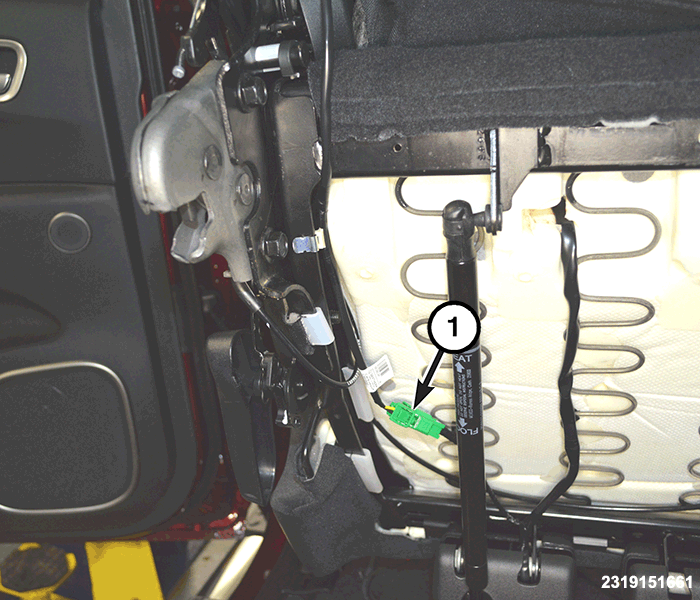

Disconnect the wire harness connector (1).

Courtesy of CHRYSLER GROUP, LLC

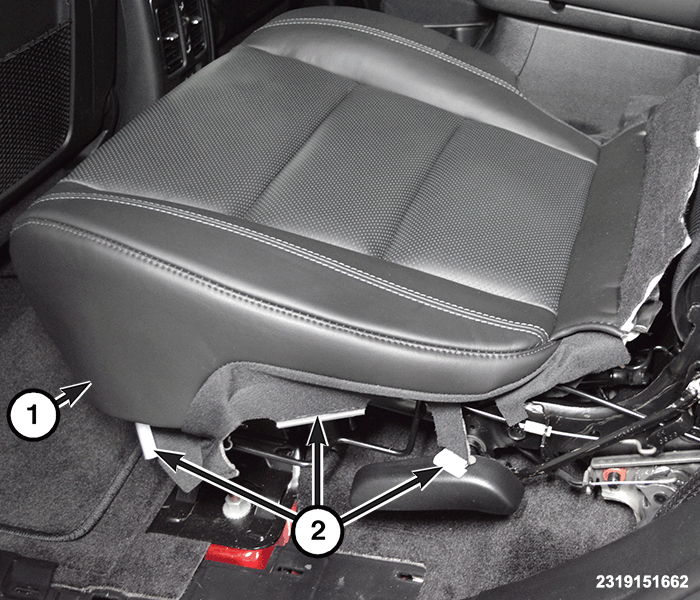

Under the seat, release all the J-clips (2), then remove the foam and cover assembly (1).

Courtesy of CHRYSLER GROUP, LLC

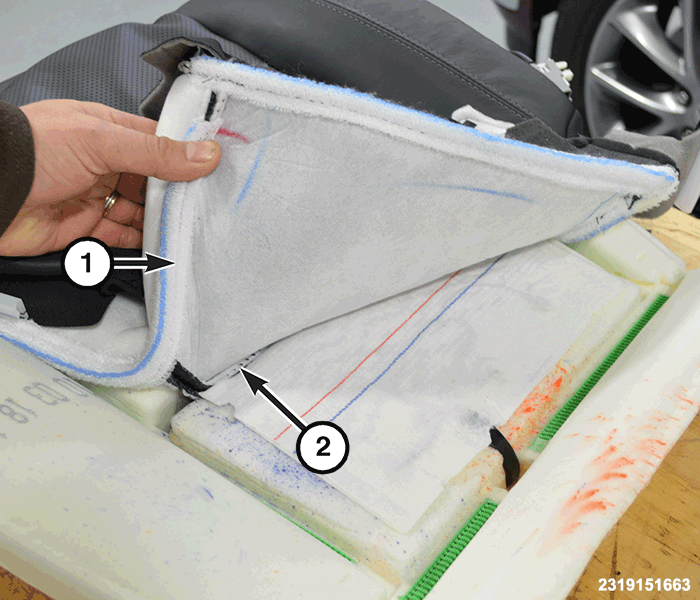

Pull the seat back cover (1) away from the foam, cut the hog rings (2) and remove.
