Fog Lamp Alignment

NOTE:

A properly aimed front fog lamp will project a pattern on the alignment screen 100 millimeters (4 inches) below the fog lamp centerline and straight ahead of the lamp for domestic market vehicles, or to 203 millimeters (8 inches) below the fog lamp centerline and straight ahead of the lamp for export market vehicles.

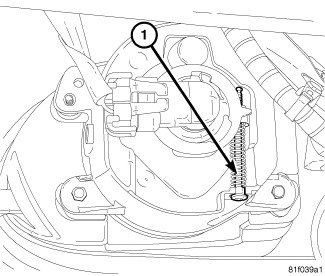

GC0128612Courtesy of CHRYSLER GROUP, LLC
  1. Turn the fog lamps ON.
  2. Reach through the outboard opening in the front of the front wheel house splash shield to access the back of the front fog lamp.
  3. Rotate the vertical adjustment screw (1) on each lamp to adjust the beam height as required.
