Connector, Trailer Tow: Removal
- Disconnect and isolate the battery negative cable.

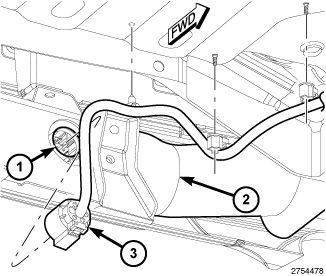

- Reach behind the bracket on the left side of the trailer hitch receiver (2) to access and disconnect the connector (3) of the body wire harness from the connector receptacle on the back of the trailer tow connector housing (1).

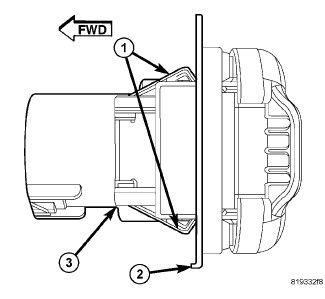

- Reach behind the bracket (2) on the trailer hitch receiver to compress each of the two spring clips (1) on the trailer tow connector housing (3) far enough to push the housing out through the face of the bracket.
- Remove the trailer tow connector from the bracket.
