Gap And Flush: Specifications

Courtesy of CHRYSLER GROUP, LLC

NOTE:

All dimensions are in millimeters.

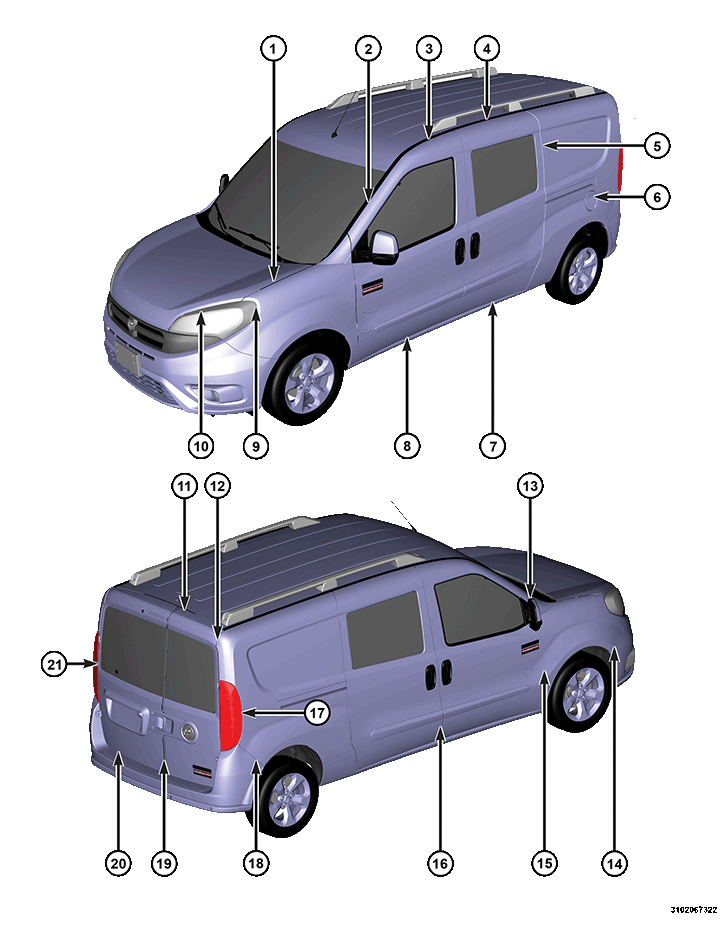

DIMENSION	DESCRIPTION	GAP	FLUSH
1	Hood to Fender	3.0 +/- 0.5 Parallel within 1.0	Glass U/F 1.3 +/- 1.6 Parallel within 1.7
2	Front Door to Windshield	8.5 +/- 1.0	-
3	Front Door to Roof	8.5 +/- 1.0	-
4	Sliding Door to Roof	8.7 +/- 1.0	-
5	Sliding Door to Roof	4.0 +/- 0.8	-
6	Gas Door to Body Side	2.5 +/- 1.2 Parallel within 1.2	0.7 +/- 0.7
7	Sliding Door to Sill	5.0 +/- 1.0	-
8	Front Door to Sill	5.0 +/- 1.2	-
9	Headlamp to Fender	2.0 +/- 1.0 Parallel within 0.7	Headlamp U/F 0.7 + 0.7 - 0.9 Parallel within 0.8
10	Headlamp to Hood	4.0 +/- 1.3 Parallel within 1.0	Headlamp U/F 0.6 +/- 1.4 Parallel within 1.7
11	Rear Door to Roof	6.0 +/- 1.4 Parallel within 1.0	-
12	Rear Door to Body Side	4.0 +/- 1.2 Parallel within 0.8	Door U/F 2.1 +/- 1.0
13	Mirror to Door	1.5 +/- 0.8 Parallel within 0.7	-
14	Front Fascia to Fender	0.0 + 0.5 / - 0.0 Parallel within 0.5	Fascia O/F 0.7 +/- 0.7 Parallel within 0.8
15	Fender to Front Door	4.0 +/- 0.6 Parallel within 0.6	Fender O/F 0.0 + 1.0
16	Front Door to Sliding Door	4.0 +/- 0.8	Front Door O/F 0 + 1.0
17	Taillamp to Body Side	1.2 +/- 1.2 Parallel within 0.7	Taillamp U/F 0.6 + 1.0 /- 0.7
18	Rear Fascia to Body Side	0.0 + 0.7 / - 0.0 Parallel within 0.5	Fascia U/F 0.7 +/- 0.7 Parallel within 0.8
19	Left Rear Door to Right Rear Door (Lower)	5.0 +/- 1.0 Parallel within 1.0	0.0 +/- 1.0
20	Rear Door to Rear Fascia	5.0 +/- 1.6 Parallel within 1.0	-
21	Taillamp to Rear Door	4.0 +/- 1.6 Parallel within 0.8	-
