CUPHOLDER, Instrument Panel: Removal

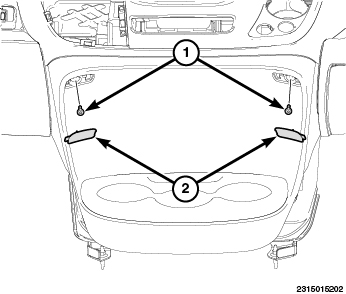

GC0160231Courtesy of CHRYSLER GROUP, LLC
  1. Using a small flat bladed tool, or equivalent remove the trim covers (2) and remove the fasteners (1).

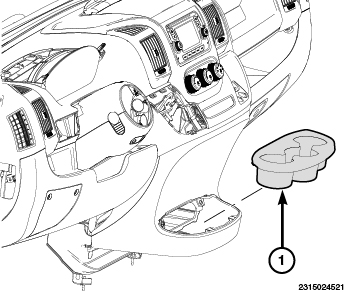

    GC0160653Courtesy of CHRYSLER GROUP, LLC
  2. Remove the cup holder insert (1).

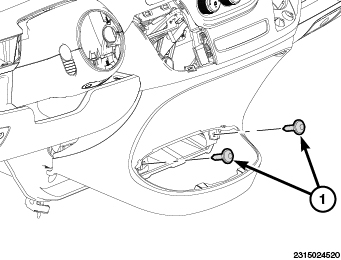

    GC0160421Courtesy of CHRYSLER GROUP, LLC
  3. Remove the lower fasteners (1).

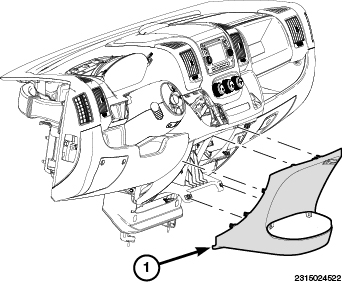

    GC0160208Courtesy of CHRYSLER GROUP, LLC
  4. Using (special tool #C-4755, Trim Stick) or equivalent, remove the cup holder trim panel (1).
