Bezel, Instrument Cluster: Installation

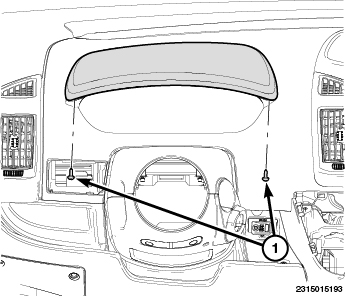

GC0160370

Courtesy of CHRYSLER GROUP, LLC

Position the cluster bezel back onto the I/P and install the fasteners (1).
