Home >> Dodge and Ram >> 2021 >> ProMaster 2500 >> Repair and Diagnosis >> Electrical >> Gauges >> Body - Interior & Exterior >> Hood >> Latch, Hood >> Removal

Latch, Hood: Removal

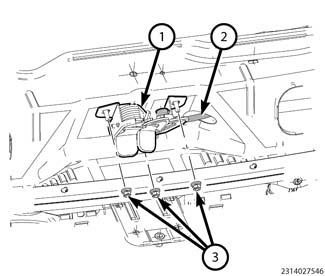

GC0160669Courtesy of CHRYSLER GROUP, LLC
  1. Using a grease pencil or equivalent, mark the position of the hood latch (1) on the upper radiator crossmember to aid installation.
  2. Remove the nuts (3) and the latch.
  3. Disconnect the hood release cable (2) and separate it from the latch.
