Cover, Cowl Panel: Removal

CAUTION:

Take special care when removing cowl panel cover. Take care to loosen the double sided foam tape at the bottom of windshield or damage may occur to the windshield.

Courtesy of CHRYSLER GROUP, LLC

Remove the hood. Refer to HOOD, REMOVAL .
Remove the upper headlamp bezels. Refer to BEZEL, HEADLAMP UPPER, REMOVAL .
Remove the wiper arms. Refer to ARM, WIPER, REMOVAL .
Disconnect the drain hose.

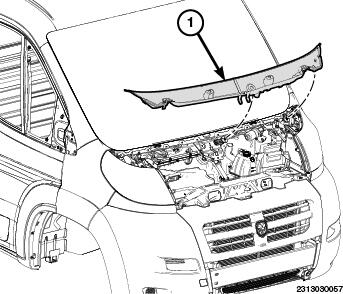

Remove the five fasteners (1).

Courtesy of CHRYSLER GROUP, LLC

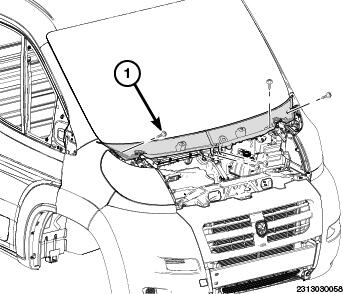

Remove the cowl panel assembly (1).
